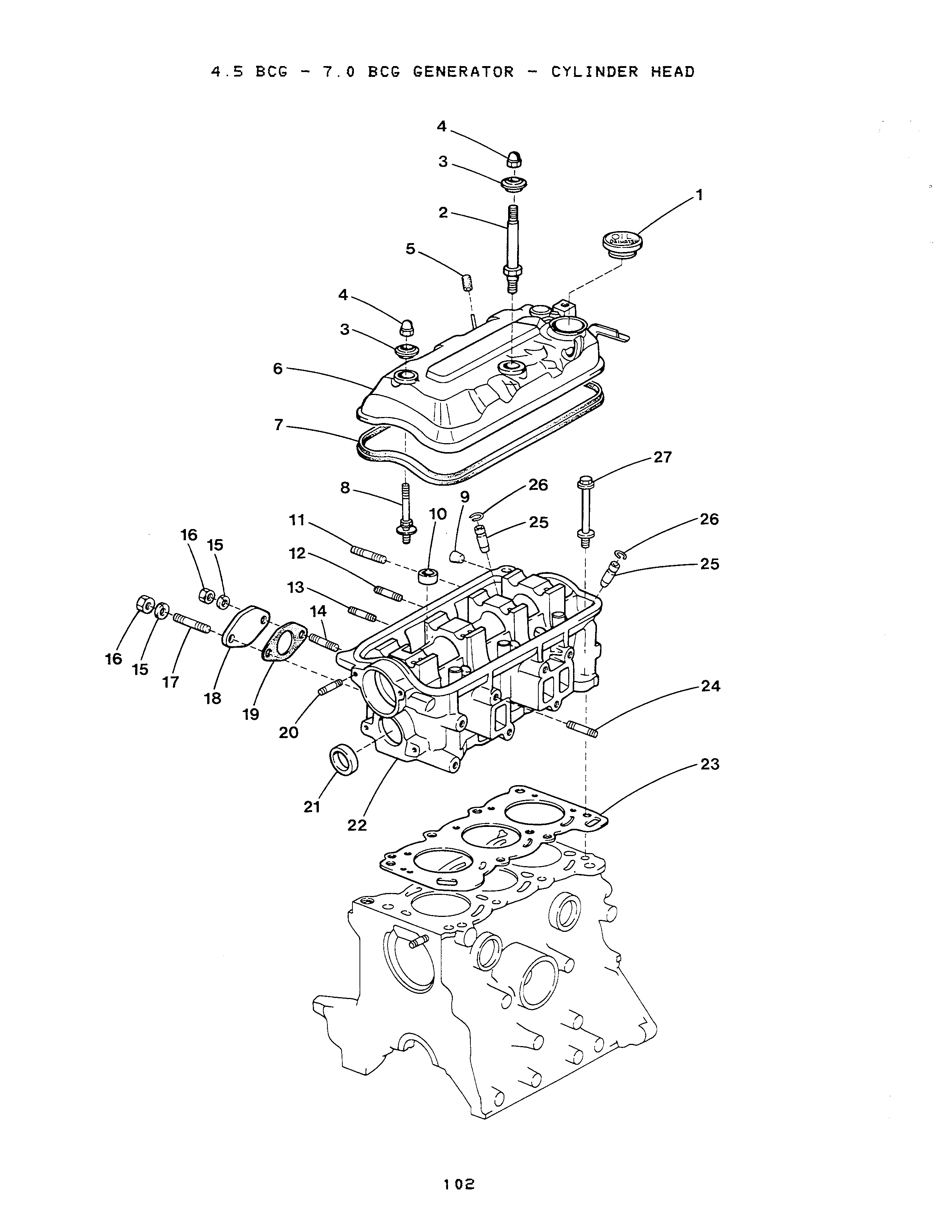

CYLINDER HEAD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

CAP

Part #: 035514
$48.90
QTY:

Sold By: EA

1-2

On Diagram

CAP

Part #: 041625
$82.40
QTY:

Sold By: EA

2

On Diagram

STUD

Part #: 037940
$15.10
QTY:

Sold By: EA

3

On Diagram

WASHER

Part #: 037943
$23.90
QTY:

Sold By: EA

4-1

On Diagram

NUT

Part #: 037942
$24.20
QTY:

Sold By: EA

4-2

On Diagram

NUT

Part #: 038567
$16.60
QTY:

Sold By: EA

5

On Diagram

CAP

Part #: 033885
$0.30
QTY:

Sold By: EA

6-1

On Diagram

COVER

Part #: 038536
$471.40
QTY:

Sold By: EA

6-2

On Diagram

COVER

Part #: 041619
$226.70
QTY:

Sold By: EA

6-3

On Diagram

COVER

Part #: 038536
$471.40
QTY:

Sold By: EA

6-4

On Diagram

COVER

Part #: 041619
$226.70
QTY:

Sold By: EA

7-1

On Diagram

GASKET (for model 4.5 BCG)

Part #: 037866

This gasket is for the 4.5 BCG

$115.70
QTY:

Sold By: EA

7-2

On Diagram

GASKET (for model 7.0 BCG)

Part #: 038537

This gasket is for the 7.0 BCG

$106.10
QTY:

Sold By: EA

8

On Diagram

STUD

Part #: 038722
$24.30
QTY:

Sold By: EA

9

On Diagram

PLUG

Part #: 037826
$13.20
QTY:

Sold By: EA

10

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

11

On Diagram

STUD M 8x32 DIN 939

Part #: 015831
$7.20
QTY:

Sold By: EA

12

On Diagram

STUD M 8x25

Part #: 038721
$10.90
QTY:

Sold By: EA

13

On Diagram

STUD

Part #: 018251

This part is replaced with part number 015828

Price not found
QTY:

Sold By: each

14

On Diagram

STUD M 8x25

Part #: 038721
$10.90
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

16

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

17

On Diagram

STUD M 8x45 DIN 939

Part #: 031282
$7.00
QTY:

Sold By: EA

18

On Diagram

COVER

Part #: 037935
$18.10
QTY:

Sold By: EA

19

On Diagram

GASKET

Part #: 037936
$27.40
QTY:

Sold By: EA

20

On Diagram

STUD M 6x20

Part #: 038732
$3.50
QTY:

Sold By: EA

21

On Diagram

PLUG

Part #: 024349
$4.40
QTY:

Sold By: EA

22-1

On Diagram

HEAD

Part #: 037863
$1,417.00
QTY:

Sold By: EA

22-2

On Diagram

HEAD

Part #: 041618
$1,230.00
QTY:

Sold By: EA

22-3

On Diagram

HEAD

Part #: 038534
$1,417.00
QTY:

Sold By: EA

22-4

On Diagram

HEAD

Part #: 041646
$1,532.00
QTY:

Sold By: EA

23-1

On Diagram

GASKET (for model 4.5 BCG)

Part #: 037864

This gasket fits the 4.5 BCG

$302.50
QTY:

Sold By: EA

23-2

On Diagram

GASKET (for model 7.0 BCG)

Part #: 038535

This part is no longer available.

$1.00
QTY:

Sold By: EA

24

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

25

On Diagram

GUIDE

Part #: 035473
$34.70
QTY:

Sold By: EA

26

On Diagram

RING

Part #: 035659
$7.80
QTY:

Sold By: EA

27

On Diagram

BOLT

Part #: 037941
$11.90
QTY:

Sold By: EA
