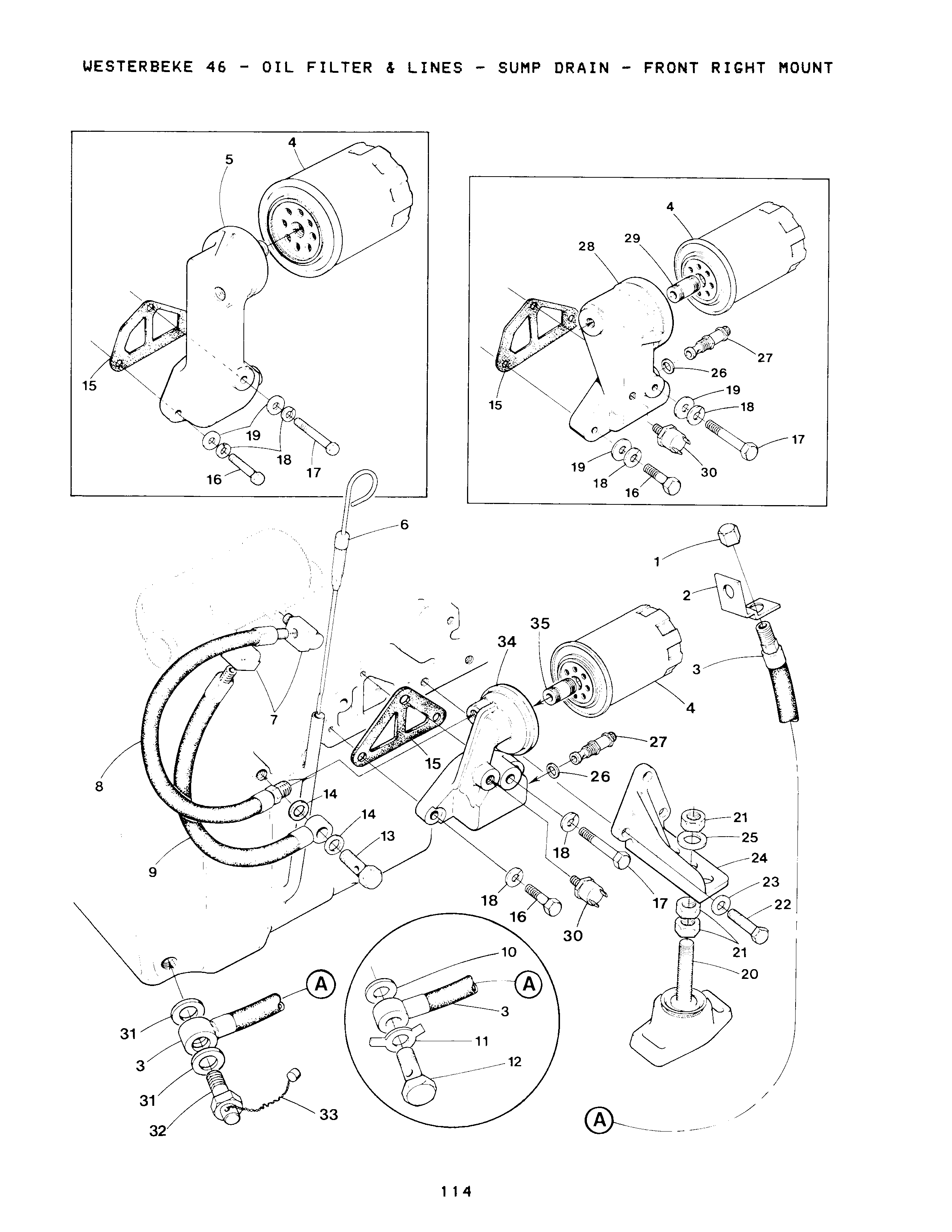

46-OIL FILTER-LINES-SUMP-FR RT MOUNT

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905
$3.20
QTY:

Sold By: EA

2

On Diagram

BRACKET

Part #: 024922
$4.40
QTY:

Sold By: EA

3-1

On Diagram

HOSE

Part #: 030846
$66.10
QTY:

Sold By: EA

3-2

On Diagram

HOSE

Part #: 033520
$61.50
QTY:

Sold By: EA

4

On Diagram

FILTER

Part #: 035828
$14.00
QTY:

Sold By: EA

5

On Diagram

ADAPTER

Part #: 033954

This part is replaced with part number 034560

Price not found
QTY:

Sold By: each

6-1

On Diagram

DIPSTICK

Part #: 034369
$205.10
QTY:

Sold By: EA

6-2

On Diagram

DIPSTICK

Part #: 034369
$205.10
QTY:

Sold By: EA

6-3

On Diagram

DIPSTICK FROM S/N 157972

Part #: 038334
$158.50
QTY:

Sold By: EA

7

On Diagram

ELBOW

Part #: 013330
$10.50
QTY:

Sold By: EA

8

On Diagram

HOSE

Part #: 034488
$70.80
QTY:

Sold By: EA

9

On Diagram

HOSE

Part #: 034188
$155.50
QTY:

Sold By: EA

10

On Diagram

WASHER

Part #: 024973

This part is replaced with part number 036493

Price not found
QTY:

Sold By: EA

11

On Diagram

TABWASHER

Part #: 024913
$13.90
QTY:

Sold By: EA

12

On Diagram

BOLT

Part #: 024782

This part is replaced with part number 036819

Price not found
QTY:

Sold By: EA

13

On Diagram

BOLT

Part #: 034177
$29.80
QTY:

Sold By: EA

14

On Diagram

WASHER

Part #: 034178
$22.10
QTY:

Sold By: EA

15

On Diagram

GASKET

Part #: 034852
$4.00
QTY:

Sold By: EA

16

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

17

On Diagram

CAPSCREW M 8x65 DIN 931

Part #: 031812
$1.30
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

19

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

20-1

On Diagram

ISOLATOR 40 DUR

Part #: 032013
$152.70
QTY:

Sold By: EA

20-2

On Diagram

ISOLATOR ASSEMBLY

Part #: 036341
$192.10
QTY:

Sold By: EA

21-1

On Diagram

NUT 5/8-18 NF JAM

Part #: 031826
$0.90
QTY:

Sold By: EA

21-2

On Diagram

NUT M16 DIN 985 LOCKING

Part #: 036338
$2.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW M12x30 DIN 933

Part #: 033958
$1.40
QTY:

Sold By: EA

23

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

24

On Diagram

MOUNT

Part #: 033892
$502.70
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER 5/8 MED

Part #: 031827
$0.30
QTY:

Sold By: EA

26

On Diagram

WASHER

Part #: 034367
$4.80
QTY:

Sold By: EA

27

On Diagram

VALVE

Part #: 034368
$167.20
QTY:

Sold By: EA

28

On Diagram

ADAPTER

Part #: 034560

This part is no longer available.

Price not found
QTY:

Sold By: EA

29

On Diagram

NIPPLE

Part #: 034663
$12.90
QTY:

Sold By: EA

30-1

On Diagram

SWITCH

Part #: 034761
$64.30
QTY:

Sold By: EA

30-2

On Diagram

SWITCH

Part #: 033935

This part is replaced with part number 037323

Price not found
QTY:

Sold By: EA

31

On Diagram

WASHER

Part #: 036493
$1.50
QTY:

Sold By: EA

32

On Diagram

BOLT

Part #: 036819
$25.40
QTY:

Sold By: EA

33

On Diagram

SEAL

Part #: 037393
$1.30
QTY:

Sold By: EA

34

On Diagram

ADAPTER

Part #: 034560

This part is no longer available.

Price not found
QTY:

Sold By: EA

35

On Diagram

NIPPLE

Part #: 034663
$12.90
QTY:

Sold By: EA
