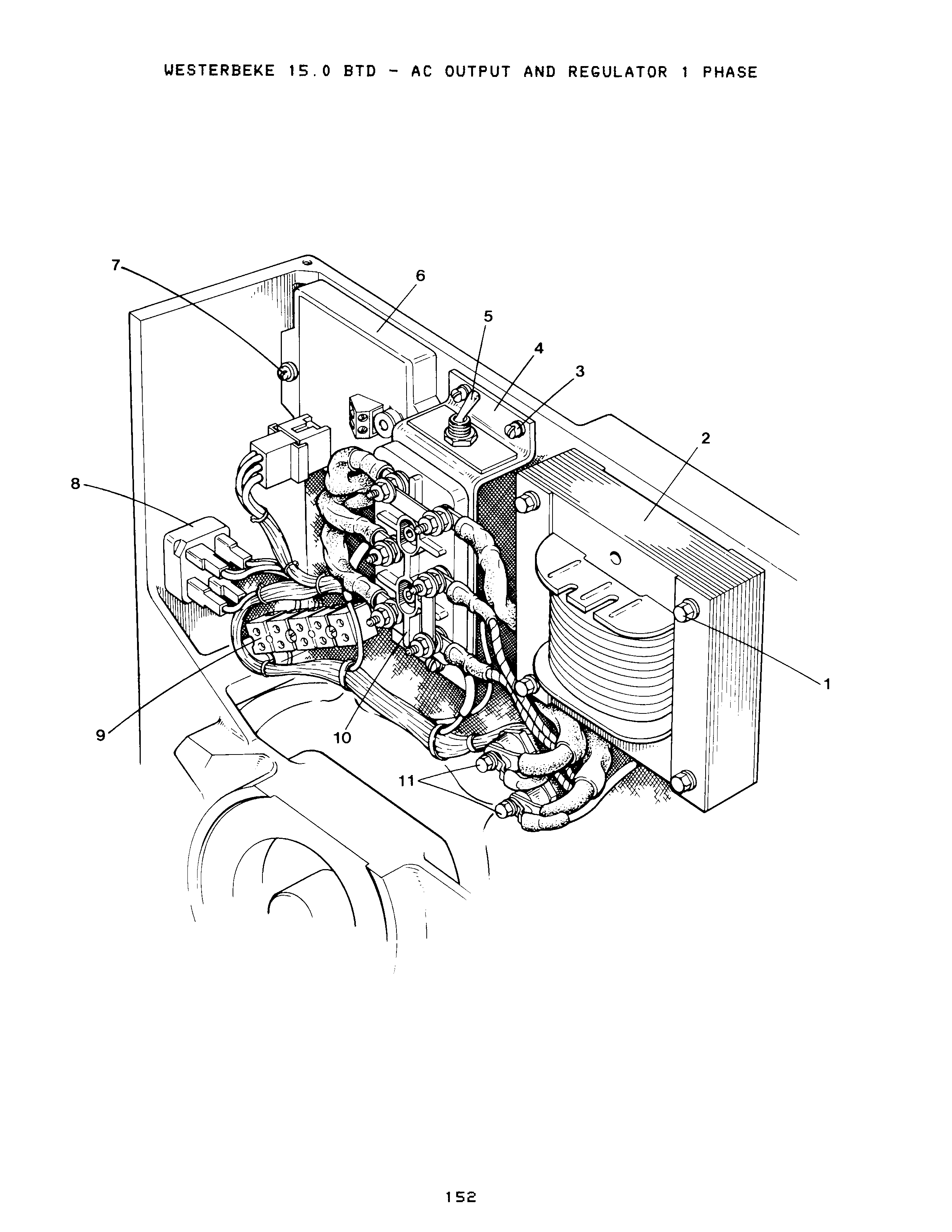

15.0 BTD - AC OUTPUT & REGULATOR 1 PH

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

CAPSCREW M 5x50 DIN 933

Part #: 031916
$0.90
QTY:

Sold By: EA

1-2

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

1-3

On Diagram

WASHER M 5 DIN 125

Part #: 031781
$0.30
QTY:

Sold By: EA

2

On Diagram

TRANSFORMER

Part #: 037463
$479.10
QTY:

Sold By: EA

3-1

On Diagram

CAPSCREW 1/2NCx4-1/4

Part #: 031718
$9.00
QTY:

Sold By: EA

3-2

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

4

On Diagram

BRACKET

Part #: 038345
$14.40
QTY:

Sold By: EA

5

On Diagram

SWITCH

Part #: 038346
$78.70
QTY:

Sold By: EA

6

On Diagram

REGULATOR

Part #: 034410
$1,289.30
QTY:

Sold By: EA

7-1

On Diagram

LOCKWASHER M 4 DIN 6797A

Part #: 031917
$0.20
QTY:

Sold By: EA

7-2

On Diagram

SCREW M 4 X 20 DIN 84A

Part #: 031934
$0.30
QTY:

Sold By: EA

8-1

On Diagram

RECTIFIER

Part #: 030809

This part is replaced with part number 043649

Price not found
QTY:

Sold By: EA

8-2

On Diagram

SCREW M 5 X 16 DIN 84A

Part #: 031931
$0.40
QTY:

Sold By: EA

8-3

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

9

On Diagram

BLOCK

Part #: 038347
$36.40
QTY:

Sold By: EA

10-1

On Diagram

BLOCK

Part #: 038342
$77.30
QTY:

Sold By: EA

10-2

On Diagram

NUT M 6 BRASS

Part #: 038343
$0.60
QTY:

Sold By: EA

10-3

On Diagram

BAR

Part #: 038344
$4.20
QTY:

Sold By: EA

11

On Diagram

TERMINAL

Part #: 035980
$7.80
QTY:

Sold By: EA

12

On Diagram

CONNECTOR

Part #: 036737
$32.30
QTY:

Sold By: EA

13

On Diagram

LABEL

Part #: 036702
$4.50
QTY:

Sold By: EA

14-1

On Diagram

KIT

Part #: 038620
Price not found
QTY:

Sold By: KT

14-2

On Diagram

KIT

Part #: 038619
Price not found
QTY:

Sold By: KT
