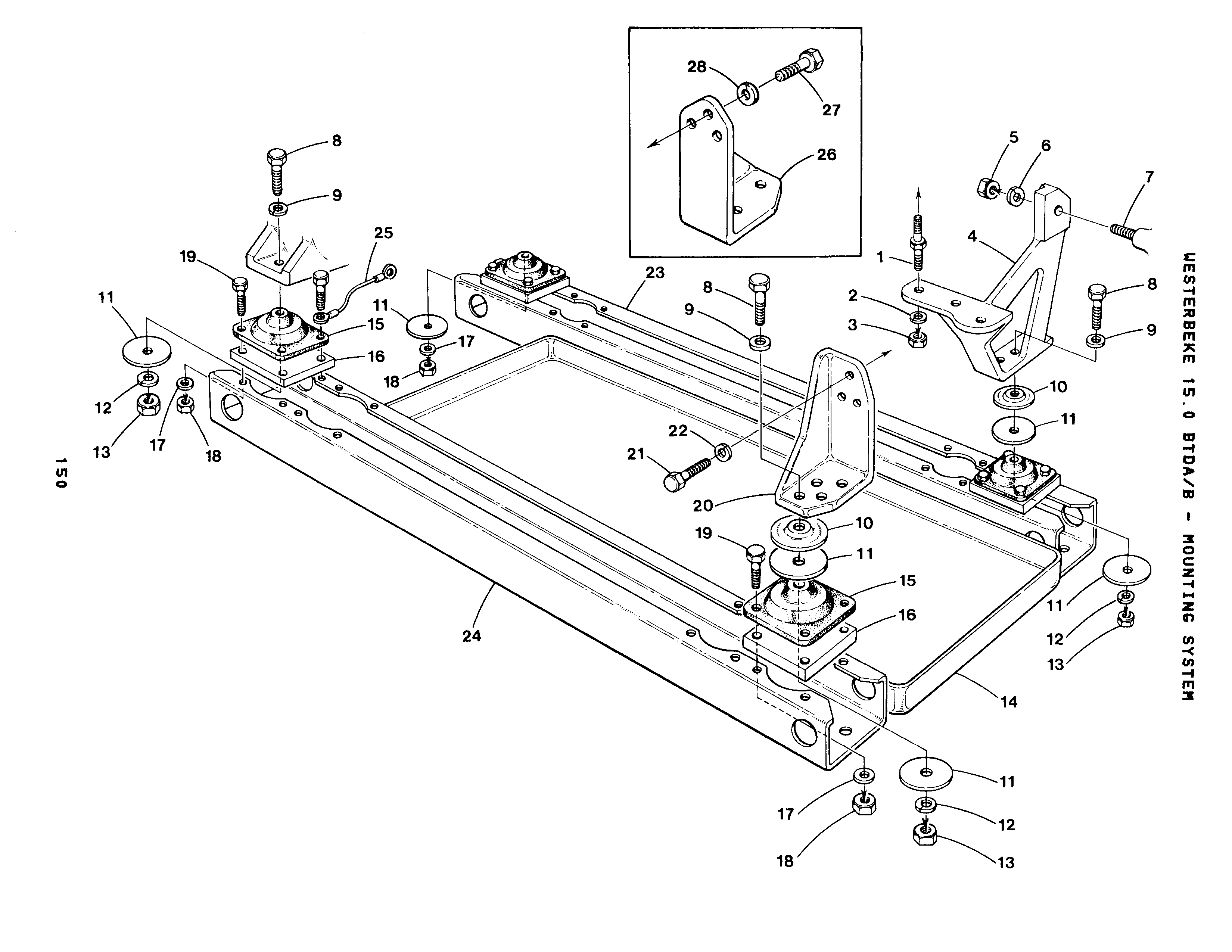

15.0 BTDA/B - MOUNTING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

STUD

Part #: 038515
$21.20
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

3

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

4

On Diagram

MOUNT

Part #: 038518
$359.30
QTY:

Sold By: EA

5

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

7

On Diagram

CAPSCREW 5/16NFx3

Part #: 031588
$1.50
QTY:

Sold By: EA

8

On Diagram

CAPSCREW 1/2NCx3

Part #: 031713
$1.50
QTY:

Sold By: EA

9

On Diagram

WASHER

Part #: 031777
$0.30
QTY:

Sold By: EA

10

On Diagram

SHIELD

Part #: 033530
$3.20
QTY:

Sold By: EA

11

On Diagram

WASHER

Part #: 024674
$1.90
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

13

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

14

On Diagram

DRIPTRAY

Part #: 038698
$92.60
QTY:

Sold By: EA

15

On Diagram

ISOLATOR

Part #: 015238
$54.80
QTY:

Sold By: EA

16

On Diagram

SPACER

Part #: 038696
$25.50
QTY:

Sold By: EA

17

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

18

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

19

On Diagram

CAPSCREW 5/16NCx1-3/4

Part #: 031558
$0.50
QTY:

Sold By: EA

20

On Diagram

MOUNT

Part #: 037788
$57.60
QTY:

Sold By: EA

21

On Diagram

CAPSCREW 7/16NFx1-1/4

Part #: 031681
$1.30
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

23

On Diagram

RAIL ASSEMBLY

Part #: 038762
$184.70
QTY:

Sold By: EA

24

On Diagram

RAIL ASSEMBLY

Part #: 038763
$191.00
QTY:

Sold By: EA

25

On Diagram

STRAP

Part #: 034593
$10.00
QTY:

Sold By: EA

26

On Diagram

MOUNT

Part #: 041026
$112.50
QTY:

Sold By: EA

27

On Diagram

CAPSCREW 7/16NFx1-1/4

Part #: 031681
$1.30
QTY:

Sold By: EA

28-1

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

28-2

On Diagram

WASHER

Part #: 031771
$0.30
QTY:

Sold By: EA
