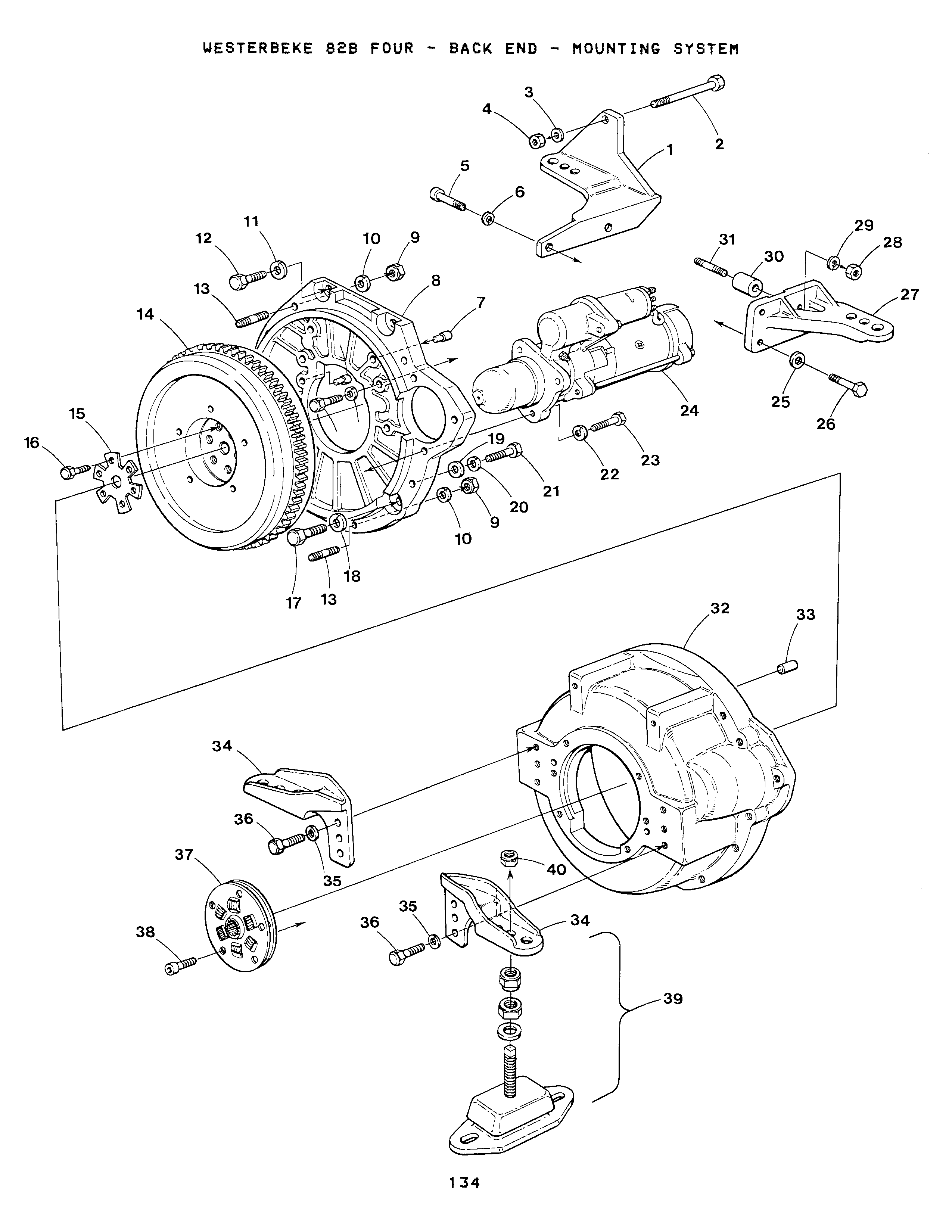

82B - BACK END - MOUNTING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOUNT

Part #: 032256
$288.60
QTY:

Sold By: EA

2

On Diagram

CAPSCREW M 8x60 DIN 933

Part #: 032506
$1.80
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

4

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x1.25x30 JIS

Part #: 031083
$3.50
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

7

On Diagram

DOWEL

Part #: 031154
$26.60
QTY:

Sold By: EA

8

On Diagram

PLATE

Part #: 038296
$787.10
QTY:

Sold By: EA

9

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M14 DIN 127

Part #: 031797
$0.50
QTY:

Sold By: EA

12

On Diagram
$4.20
QTY:

Sold By: EA

13

On Diagram

STUD M10x30 DIN 939

Part #: 037821
$7.10
QTY:

Sold By: EA

14-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 039089
$738.50
QTY:

Sold By: EA

14-2

On Diagram

GEAR

Part #: 038392
$132.00
QTY:

Sold By: EA

15

On Diagram

WASHER

Part #: 036206
$20.30
QTY:

Sold By: EA

16

On Diagram

BOLT

Part #: 036138
$7.30
QTY:

Sold By: EA

17

On Diagram
$1.20
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

19

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

20

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

21

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

23

On Diagram
$3.00
QTY:

Sold By: EA

24

On Diagram

MOTOR

Part #: 038384
$604.70
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

26

On Diagram

CAPSCREW M10x1.25x30 JIS

Part #: 031083
$3.50
QTY:

Sold By: EA

27

On Diagram

MOUNT

Part #: 032258
$331.00
QTY:

Sold By: EA

28

On Diagram

NUT M12 X 1.5 DIN 934

Part #: 031795
$1.30
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

30

On Diagram

SPACER

Part #: 016714
$27.30
QTY:

Sold By: EA

31

On Diagram

STUD M12x1.5x48

Part #: 032916
$15.40
QTY:

Sold By: EA

32

On Diagram

HOUSING

Part #: 038376
$1,189.00
QTY:

Sold By: EA

33

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

34

On Diagram

MOUNT

Part #: 038578
$347.00
QTY:

Sold By: EA

35

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

36

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

37

On Diagram

DAMPER

Part #: 011618
$705.20
QTY:

Sold By: EA

38

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

39

On Diagram

ISOLATOR

Part #: 036334
$256.80
QTY:

Sold By: EA

40

On Diagram

NUT M16 DIN 985 LOCKING

Part #: 036338
$2.20
QTY:

Sold By: EA
