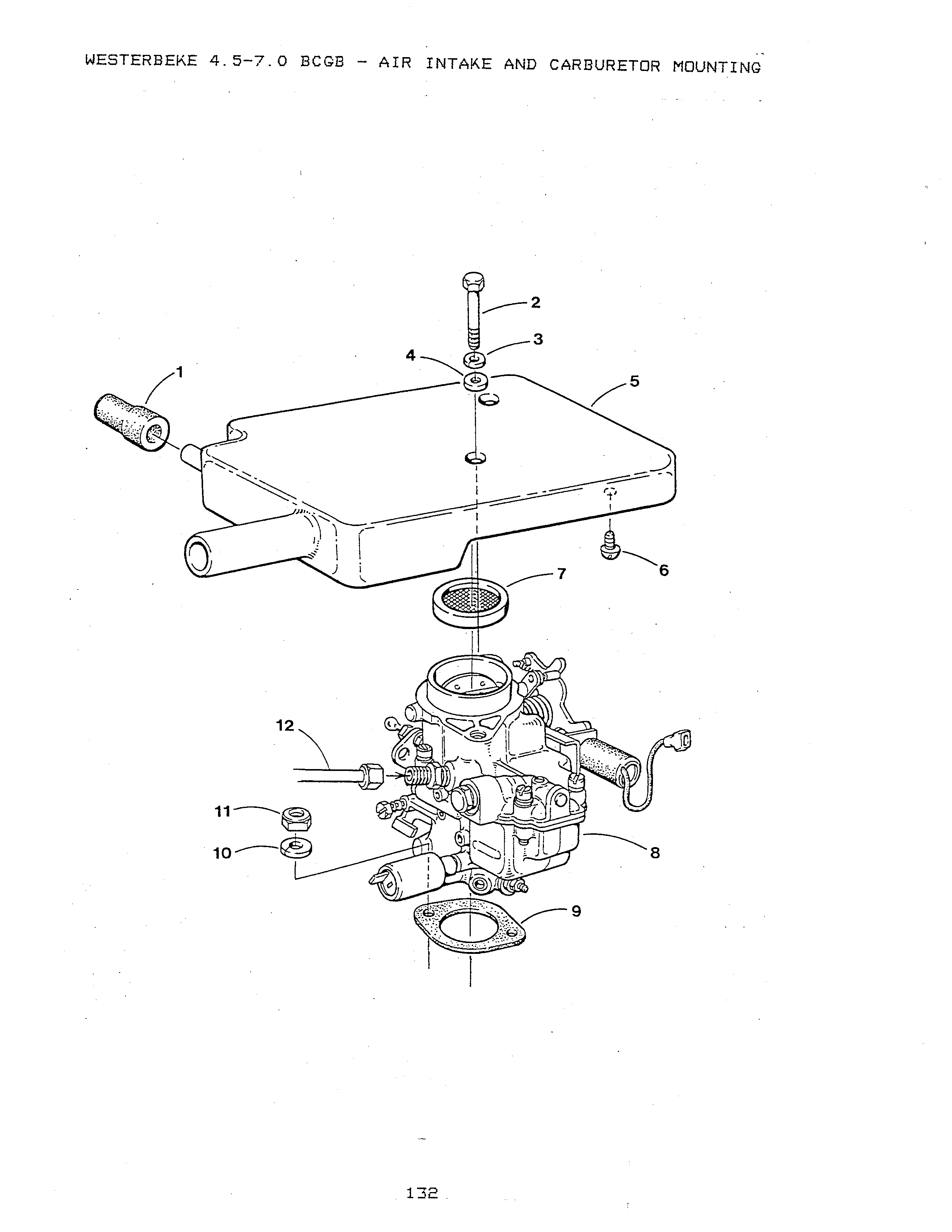

AIR INTAKE & CARBURETOR MOUNTING

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

HOSE

Part #: 035894
$16.10
QTY:

Sold By: EA

2

On Diagram

CAPSCREW M 6x40 DIN 931

Part #: 034213
$0.80
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

4

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

5

On Diagram
$69.20
QTY:

Sold By: EA

6

On Diagram

SCREW 1/4 X 1/2 TAPPING

Part #: 031889
$0.70
QTY:

Sold By: EA

7

On Diagram

ARRESTOR

Part #: 043438
$7.60
QTY:

Sold By: EA

8

On Diagram

CARBURETOR

Part #: 043788

This part is replaced with part number 052883

Price not found
QTY:

Sold By: EA

9

On Diagram

GASKET

Part #: 035293
$3.20
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

11

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

12

On Diagram

LINE

Part #: 042825
$103.20
QTY:

Sold By: EA
