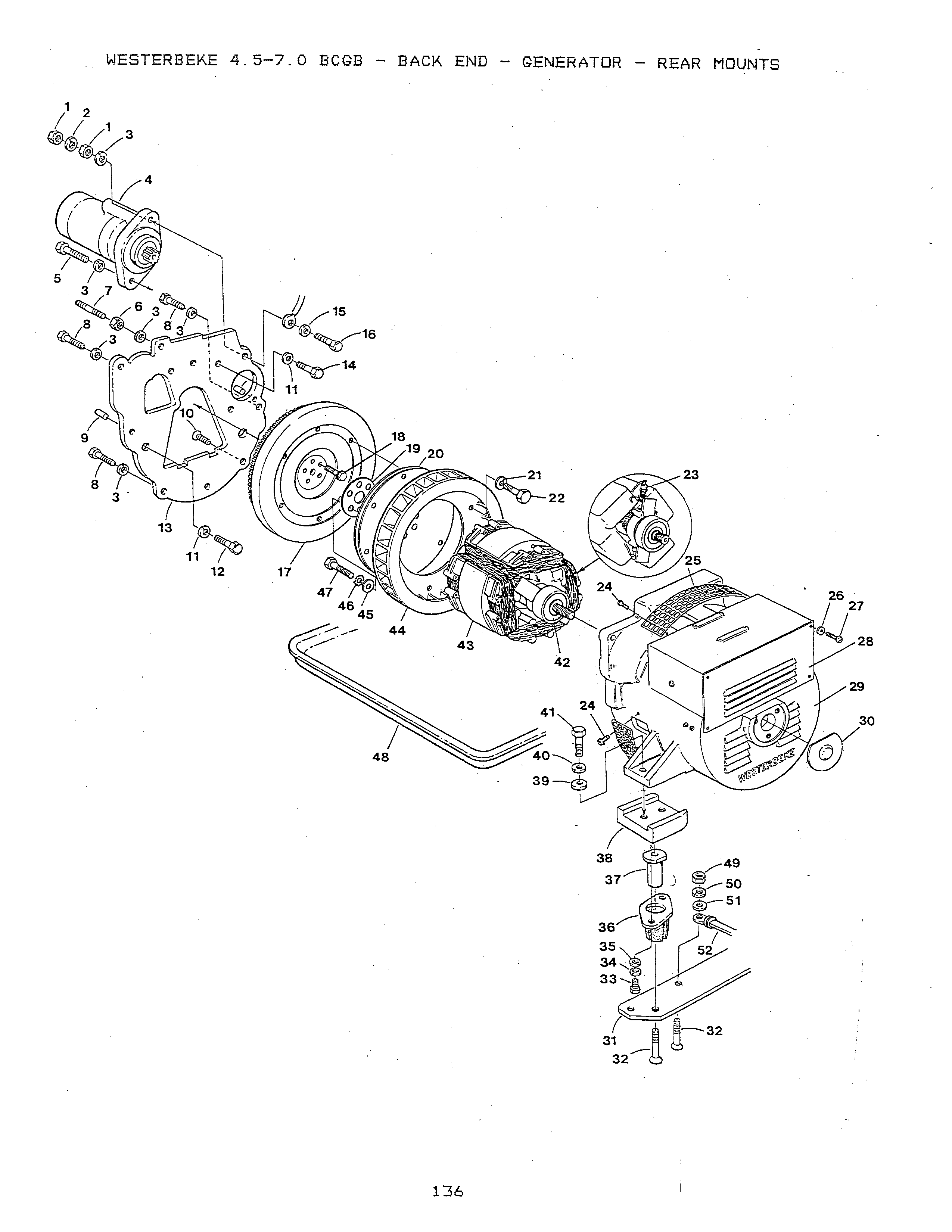

BACK END - GENERATOR - REAR MOUNTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NUT M10 DIN 936 JAM

Part #: 031803
$0.60
QTY:

Sold By: EA

2

On Diagram
$1.40
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

6

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

7

On Diagram

STUD M10x30 DIN 939

Part #: 037821
$7.10
QTY:

Sold By: EA

8

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

9

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

10

On Diagram
$2.50
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

12

On Diagram
$2.10
QTY:

Sold By: EA

13

On Diagram

PLATE

Part #: 041266
$416.60
QTY:

Sold By: EA

14

On Diagram
$1.70
QTY:

Sold By: EA

15

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

16

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

17-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 041269
$582.10
QTY:

Sold By: EA

17-2

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

18

On Diagram

BOLT

Part #: 042964
$6.40
QTY:

Sold By: EA

19

On Diagram

PLATE

Part #: 035928
Price not found
QTY:

Sold By: EA

20

On Diagram

PLATE

Part #: 035927
Price not found
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

23

On Diagram

DIODE SET

Part #: 035971

This is a set of 2 diodes.

$125.70
QTY:

Sold By: ST

24

On Diagram

SCREW M 5 X 10 DIN 85A

Part #: 031933
$0.40
QTY:

Sold By: EA

25

On Diagram

GUARD

Part #: 035974
$31.90
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

27

On Diagram

SCREW M 5 X 10 DIN 84A

Part #: 031918
$1.70
QTY:

Sold By: EA

28-1

On Diagram

COVER

Part #: 035984
$28.60
QTY:

Sold By: EA

28-2

On Diagram

COVER

Part #: 035975
$34.80
QTY:

Sold By: EA

29-1

On Diagram

GENERATOR 4.5KW BC FR 31024 Single Phase

Part #: 043092

This generator is no longer available.

Price not found
QTY:

Sold By: EA

29-2

On Diagram
$2,641.00
QTY:

Sold By: EA

29-3

On Diagram
$2,029.50
QTY:

Sold By: EA

29-4

On Diagram
$2,760.00
QTY:

Sold By: EA

29-5

On Diagram
$1,555.80
QTY:

Sold By: EA

29-6

On Diagram
$2,574.00
QTY:

Sold By: EA

30

On Diagram

COVER

Part #: 034182
$16.30
QTY:

Sold By: EA

31

On Diagram

PLATE

Part #: 043856
$57.20
QTY:

Sold By: EA

31-2

On Diagram

STRAP

Part #: 034593
$10.00
QTY:

Sold By: EA

32

On Diagram
$2.50
QTY:

Sold By: EA

33

On Diagram

CAPSCREW M 6x16 DIN 933

Part #: 017012
$0.50
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

35

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

36

On Diagram

ISOLATOR

Part #: 042810
$30.10
QTY:

Sold By: EA

37

On Diagram

SHAFT

Part #: 043858
$49.00
QTY:

Sold By: EA

38

On Diagram

SPACER

Part #: 043857
$23.20
QTY:

Sold By: EA

39

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

40

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

41

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

42

On Diagram

BEARING

Part #: 035972
$46.90
QTY:

Sold By: EA

43-1

On Diagram

ARMATURE BC 4.5KW 1PH

Part #: 035982
$1,900.00
QTY:

Sold By: EA

43-2

On Diagram

ARMATURE BC 6.5KW 1PH

Part #: 035970
$2,043.30
QTY:

Sold By: EA

44

On Diagram

FAN

Part #: 035969
$149.80
QTY:

Sold By: EA

45

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

46

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

47

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

48

On Diagram

DRIPTRAY

Part #: 042783
$35.60
QTY:

Sold By: EA

49

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

50

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

51

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

52

On Diagram

STRAP

Part #: 034593
$10.00
QTY:

Sold By: EA
