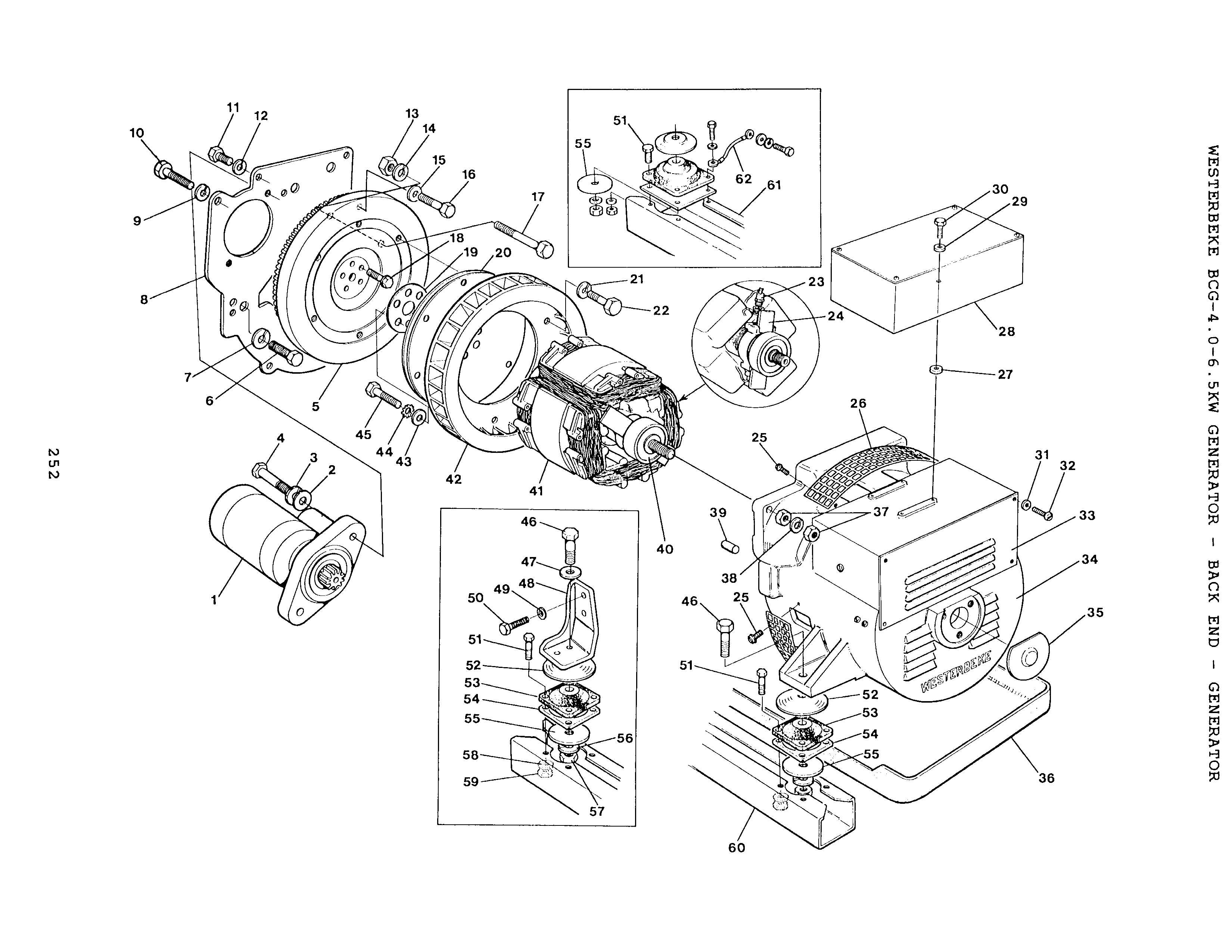

BACK END - GENERATOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

2

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4

On Diagram

CAPSCREW

Part #: 024589
Price not found
QTY:

Sold By: each

5-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 034950
$333.60
QTY:

Sold By: EA

5-2

On Diagram

GEAR

Part #: 035105

This part is no longer available.

Price not found
QTY:

Sold By: EA

5-3

On Diagram

FLYWHEEL ASSEMBLY

Part #: 034760
$399.00
QTY:

Sold By: EA

5-4

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

6-1

On Diagram
$3.90
QTY:

Sold By: EA

6-2

On Diagram
$2.60
QTY:

Sold By: EA

7-1

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

7-2

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

8-1

On Diagram

PLATE

Part #: 034956
$263.70
QTY:

Sold By: EA

8-2

On Diagram

PLATE

Part #: 034764

This part is no longer available.

Price not found
QTY:

Sold By: EA

9

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

10

On Diagram

CAPSCREW M10x55 DIN 933

Part #: 013631
$2.30
QTY:

Sold By: EA

11-1

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

11-2

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

11-3

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

13

On Diagram

NUT M12 X 1.25 DIN 934

Part #: 024957
$0.90
QTY:

Sold By: EA

14

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

15-1

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

15-2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

16-1

On Diagram

CAPSCREW M 8x50 DIN 931

Part #: 024949
$1.50
QTY:

Sold By: EA

16-2

On Diagram
$2.20
QTY:

Sold By: EA

17

On Diagram
$4.50
QTY:

Sold By: EA

18-1

On Diagram
$2.30
QTY:

Sold By: EA

18-2

On Diagram
$2.20
QTY:

Sold By: EA

19

On Diagram

PLATE

Part #: 035928
Price not found
QTY:

Sold By: EA

20

On Diagram

PLATE

Part #: 035927
Price not found
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

24

On Diagram

DIODE SET

Part #: 035971

This is a set of 2 diodes.

$125.70
QTY:

Sold By: ST

25

On Diagram

SCREW M 5 X 10 DIN 85A

Part #: 031933
$0.40
QTY:

Sold By: EA

26

On Diagram

GUARD

Part #: 035974
$31.90
QTY:

Sold By: EA

27

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

28

On Diagram

PANEL

Part #: 035201
$834.70
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

30

On Diagram

CAPSCREW M 6x12 DIN 933

Part #: 031825
$0.60
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

32

On Diagram

SCREW M 5 X 10 DIN 84A

Part #: 031918
$1.70
QTY:

Sold By: EA

33-1

On Diagram

COVER

Part #: 035984
$28.60
QTY:

Sold By: EA

33-2

On Diagram

COVER

Part #: 035975
$34.80
QTY:

Sold By: EA

34-1

On Diagram

GENERATOR

Part #: 034414

This part is replaced with part number 037429

Price not found
QTY:

Sold By: EA

34-2

On Diagram

GENERATOR

Part #: 034408

This part is replaced with part number 037438

Price not found
QTY:

Sold By: EA

34-3

On Diagram

HOUSING

Part #: 035983

This part is replaced with part number 041218

Price not found
QTY:

Sold By: EA

34-4

On Diagram
$2,407.00
QTY:

Sold By: EA

35

On Diagram

COVER

Part #: 034182
$16.30
QTY:

Sold By: EA

36

On Diagram

DRIPTRAY

Part #: 033964

This part is replaced with part number 036376 in 10kW, 8kW, & 4.4kW generators, part number 037354 in 15kW BTD series generators, or part number 037378 in the 8.5 BTG, 12.5 BTG, 15.0 BTG, 11.0 BTD or 12.5 BTD

Price not found
QTY:

Sold By: each

37

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

38

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

39

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

40

On Diagram

BEARING

Part #: 035972
$46.90
QTY:

Sold By: EA

41-1

On Diagram

ARMATURE BC 4.5KW 1PH

Part #: 035982
$1,900.00
QTY:

Sold By: EA

41-2

On Diagram

ARMATURE BC 6.5KW 1PH

Part #: 035970
$2,043.30
QTY:

Sold By: EA

42

On Diagram

FAN

Part #: 035969
$149.80
QTY:

Sold By: EA

43

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

44

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

45

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

46

On Diagram

CAPSCREW 1/2NCx2-1/2

Part #: 031711
$1.40
QTY:

Sold By: EA

47

On Diagram

WASHER

Part #: 031777
$0.30
QTY:

Sold By: EA

48-1

On Diagram

MOUNT

Part #: 034942
$192.70
QTY:

Sold By: EA

48-2

On Diagram

MOUNT

Part #: 034940
$216.20
QTY:

Sold By: EA

48-3

On Diagram

MOUNT

Part #: 034878
$200.40
QTY:

Sold By: EA

48-4

On Diagram

MOUNT

Part #: 034880
$192.70
QTY:

Sold By: EA

49

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

50

On Diagram
$2.10
QTY:

Sold By: EA

51-1

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

51-2

On Diagram

CAPSCREW 5/16NCx1-1/2

Part #: 031557
$0.50
QTY:

Sold By: EA

52

On Diagram

SHIELD

Part #: 033530
$3.20
QTY:

Sold By: EA

53

On Diagram

ISOLATOR

Part #: 024776
$44.40
QTY:

Sold By: EA

54-1

On Diagram

SPACER

Part #: 035273
$9.10
QTY:

Sold By: EA

54-2

On Diagram

SPACER

Part #: 035271
$14.30
QTY:

Sold By: EA

55

On Diagram

WASHER

Part #: 024674
$1.90
QTY:

Sold By: EA

56

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

57

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

58

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

59

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

60-1

On Diagram

RAIL ASSEMBLY-LEFT

Part #: 035453
$135.00
QTY:

Sold By: EA

60-2

On Diagram

RAIL ASSEMBLY-LEFT

Part #: 035444
$139.40
QTY:

Sold By: EA

61-1

On Diagram

RAIL ASSEMBLY-RIGHT

Part #: 035454
$145.00
QTY:

Sold By: EA

61-2

On Diagram

RAIL ASSEMBLY-RIGHT

Part #: 035445
$148.00
QTY:

Sold By: EA

62

On Diagram

STRAP

Part #: 034593
$10.00
QTY:

Sold By: EA
