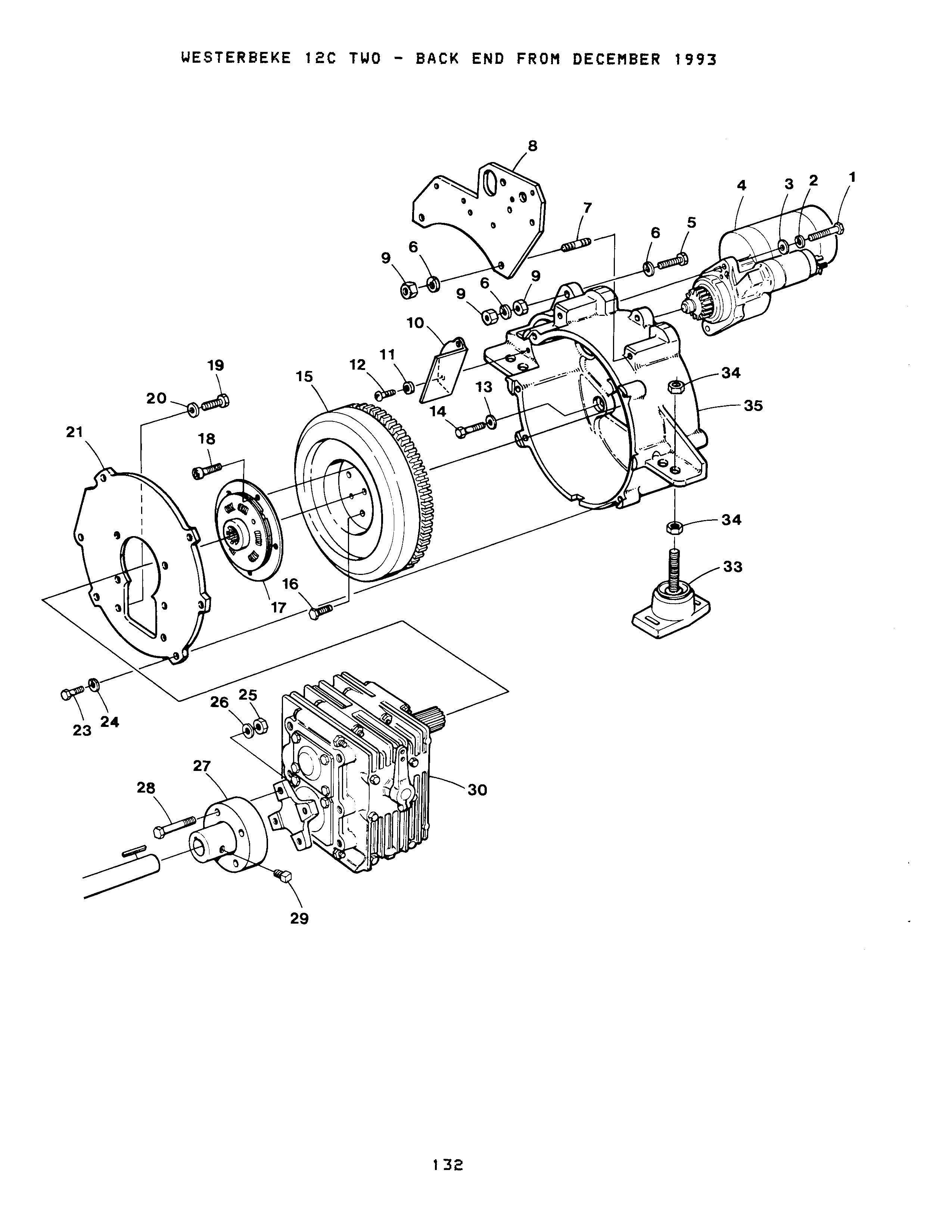

BACK END FROM DECEMBER 1993

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

4

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x40 DIN 933

Part #: 034590
$1.70
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

7

On Diagram

STUD M 8x32 DIN 939

Part #: 015831
$7.20
QTY:

Sold By: EA

9

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

10

On Diagram

COVER

Part #: 039830
$15.40
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

12

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

14

On Diagram
$2.20
QTY:

Sold By: EA

15-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 036554
$408.30
QTY:

Sold By: EA

15-2

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

16

On Diagram

SOLENOID

Part #: 039624
$129.30
QTY:

Sold By: EA

17

On Diagram

DAMPER

Part #: 019398
$407.40
QTY:

Sold By: EA

18

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

19

On Diagram

CAPSCREW M 8x18 DIN 933

Part #: 020650
$0.70
QTY:

Sold By: EA

20

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

21

On Diagram

ADAPTER

Part #: 039762
$182.60
QTY:

Sold By: EA

23

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

24

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

25

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

27-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

27-2

On Diagram

COUPLING 0.875

Part #: 023707
$321.20
QTY:

Sold By: EA

27-3

On Diagram

COUPLING 1.000

Part #: 023708
$351.30
QTY:

Sold By: EA

27-4

On Diagram

COUPLING 1.125

Part #: 023709
$547.10
QTY:

Sold By: EA

27-5

On Diagram

COUPLING 1.250

Part #: 023710
$547.10
QTY:

Sold By: EA

27-6

On Diagram

COUPLING 1.375

Part #: 023711
$338.70
QTY:

Sold By: EA

27-7

On Diagram

COUPLING 1.500

Part #: 023712
$547.10
QTY:

Sold By: EA

28

On Diagram
$2.10
QTY:

Sold By: EA

29

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

30

On Diagram

GEAR

Part #: 039535

This part is no longer available.

Price not found
QTY:

Sold By: EA

33

On Diagram

ISOLATOR ASSEMBLY

Part #: 036339
$192.40
QTY:

Sold By: EA

34

On Diagram

NUT M16 DIN 985 LOCKING

Part #: 036338
$2.20
QTY:

Sold By: EA

35

On Diagram

HOUSING

Part #: 039813

This part is no longer available.

Price not found
QTY:

Sold By: EA
