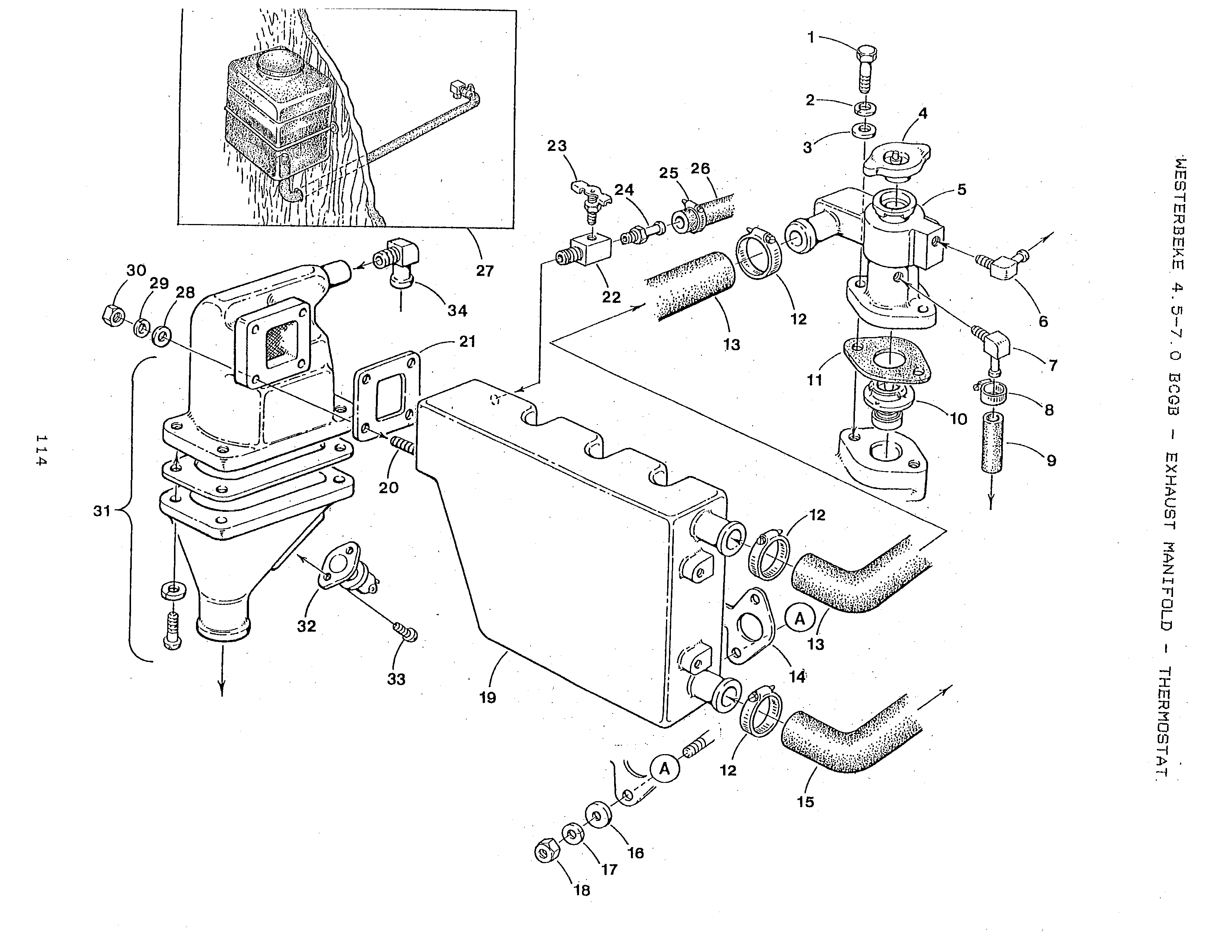

EXHAUST MANIFOLD - THERMOSTAT

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAPSCREW M 6x25 DIN 933

Part #: 020628
$0.50
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

3

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

4

On Diagram

CAP

Part #: 024306
$8.90
QTY:

Sold By: EA

5

On Diagram

HOUSING

Part #: 042228
$77.80
QTY:

Sold By: EA

6

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$16.30
QTY:

Sold By: EA

7

On Diagram

ELBOW

Part #: 042616
$3.60
QTY:

Sold By: EA

8

On Diagram

CLAMP

Part #: 040384
$2.10
QTY:

Sold By: EA

9

On Diagram

HOSE

Part #: 036869

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.60
QTY:

Sold By: IN

10

On Diagram
$13.80
QTY:

Sold By: EA

11

On Diagram

GASKET

Part #: 042260
$3.70
QTY:

Sold By: EA

12

On Diagram

CLAMP

Part #: 011405
$2.30
QTY:

Sold By: EA

13

On Diagram

HOSE

Part #: 042122
$17.70
QTY:

Sold By: EA

14

On Diagram

GASKET

Part #: 042252
$13.60
QTY:

Sold By: EA

15

On Diagram

HOSE

Part #: 043546
$52.00
QTY:

Sold By: EA

16

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

17

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

18

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

19

On Diagram

MANIFOLD

Part #: 044391
$317.80
QTY:

Sold By: EA

20

On Diagram

STUD M 6x20 DIN 939

Part #: 042689
$4.20
QTY:

Sold By: EA

21

On Diagram

GASKET

Part #: 042304
$10.10
QTY:

Sold By: EA

22

On Diagram

TEE

Part #: 016692
$16.20
QTY:

Sold By: EA

23

On Diagram

PETCOCK

Part #: 011471
$5.50
QTY:

Sold By: EA

24

On Diagram

CONNECTOR

Part #: 043905
$1.40
QTY:

Sold By: EA

25

On Diagram

CLAMP

Part #: 040384
$2.10
QTY:

Sold By: EA

26

On Diagram

HOSE

Part #: 036869

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.60
QTY:

Sold By: IN

27

On Diagram

TANK KIT

Part #: 024977
$55.30
QTY:

Sold By: KT

28

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

30

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

31

On Diagram

ELBOW

Part #: 042662
$863.80
QTY:

Sold By: EA

32

On Diagram

SWITCH

Part #: 032923
$37.70
QTY:

Sold By: EA

33

On Diagram

SCREW 6-32 X 1/4 TAPPING

Part #: 035711
$0.40
QTY:

Sold By: EA

34

On Diagram

ELBOW 3/8NPT x 3/4 HOSE

Part #: 042258
$21.00
QTY:

Sold By: EA
