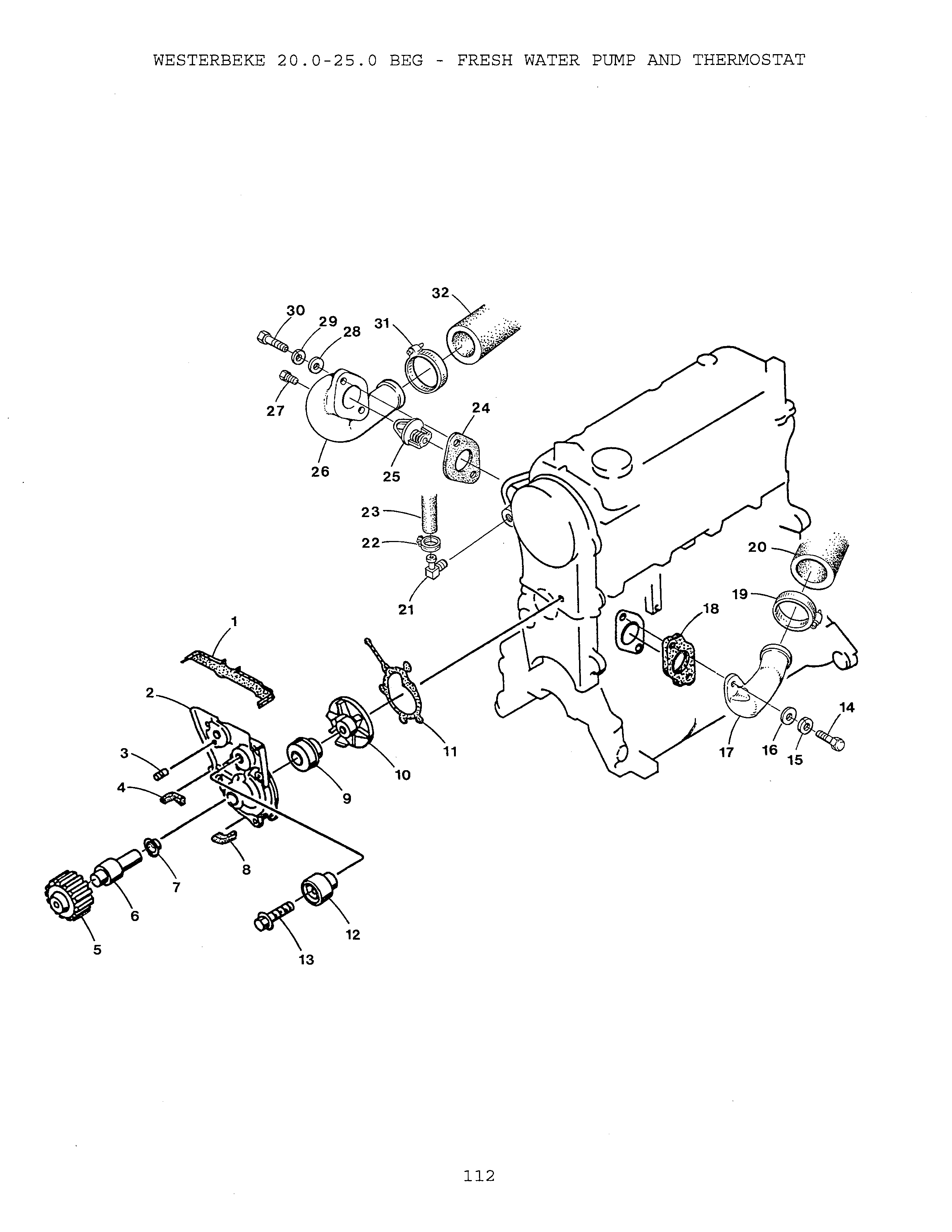

FRESH WATER PUMP AND THERMOSTAT

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

SEAL

Part #: 040786
$29.20
QTY:

Sold By: EA

2

On Diagram

PUMP

Part #: 040850
$240.70
QTY:

Sold By: EA

3

On Diagram

DOWEL 5MM x 12MM DIN 6325

Part #: 045389
$1.50
QTY:

Sold By: EA

4

On Diagram

SEAL

Part #: 040787
$14.10
QTY:

Sold By: EA

7

On Diagram

SLINGER

Part #: 040852
$3.10
QTY:

Sold By: EA

8

On Diagram

SEAL

Part #: 040788
$14.10
QTY:

Sold By: EA

9

On Diagram

SEAL

Part #: 040364
$36.30
QTY:

Sold By: EA

11

On Diagram

GASKET

Part #: 040851
$22.00
QTY:

Sold By: EA

12

On Diagram

IDLER

Part #: 040832
$108.10
QTY:

Sold By: EA

13

On Diagram
$41.50
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

16

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

17

On Diagram

CONNECTOR

Part #: 040414
$61.90
QTY:

Sold By: EA

18

On Diagram

GASKET

Part #: 040435
$5.20
QTY:

Sold By: EA

19

On Diagram

CLAMP

Part #: 021122
$2.50
QTY:

Sold By: EA

20

On Diagram

HOSE

Part #: 040554
$24.50
QTY:

Sold By: EA

21

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$17.80
QTY:

Sold By: EA

22

On Diagram

CLAMP

Part #: 024906
$1.50
QTY:

Sold By: EA

23

On Diagram

HOSE

Part #: 035435

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.50
QTY:

Sold By: IN

24

On Diagram

GASKET

Part #: 040434
$5.40
QTY:

Sold By: EA

25

On Diagram

THERMOSTAT 140F

Part #: 035736
$18.30
QTY:

Sold By: EA

26

On Diagram

HOUSING

Part #: 040206
$75.40
QTY:

Sold By: EA

27-1

On Diagram
$3.10
QTY:

Sold By: EA

27-2

On Diagram

SENDER

Part #: 035109
$69.60
QTY:

Sold By: EA

28

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

30

On Diagram

CAPSCREW M 8x25 DIN 912

Part #: 298460
$1.40
QTY:

Sold By: EA

31

On Diagram

CLAMP

Part #: 038193
$3.50
QTY:

Sold By: EA

32

On Diagram

HOSE 1-3/4 IN SOFT WALL

Part #: 038848

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$2.70
QTY:

Sold By: IN

33

On Diagram

CLAMP

Part #: 013736
$1.70
QTY:

Sold By: EA
