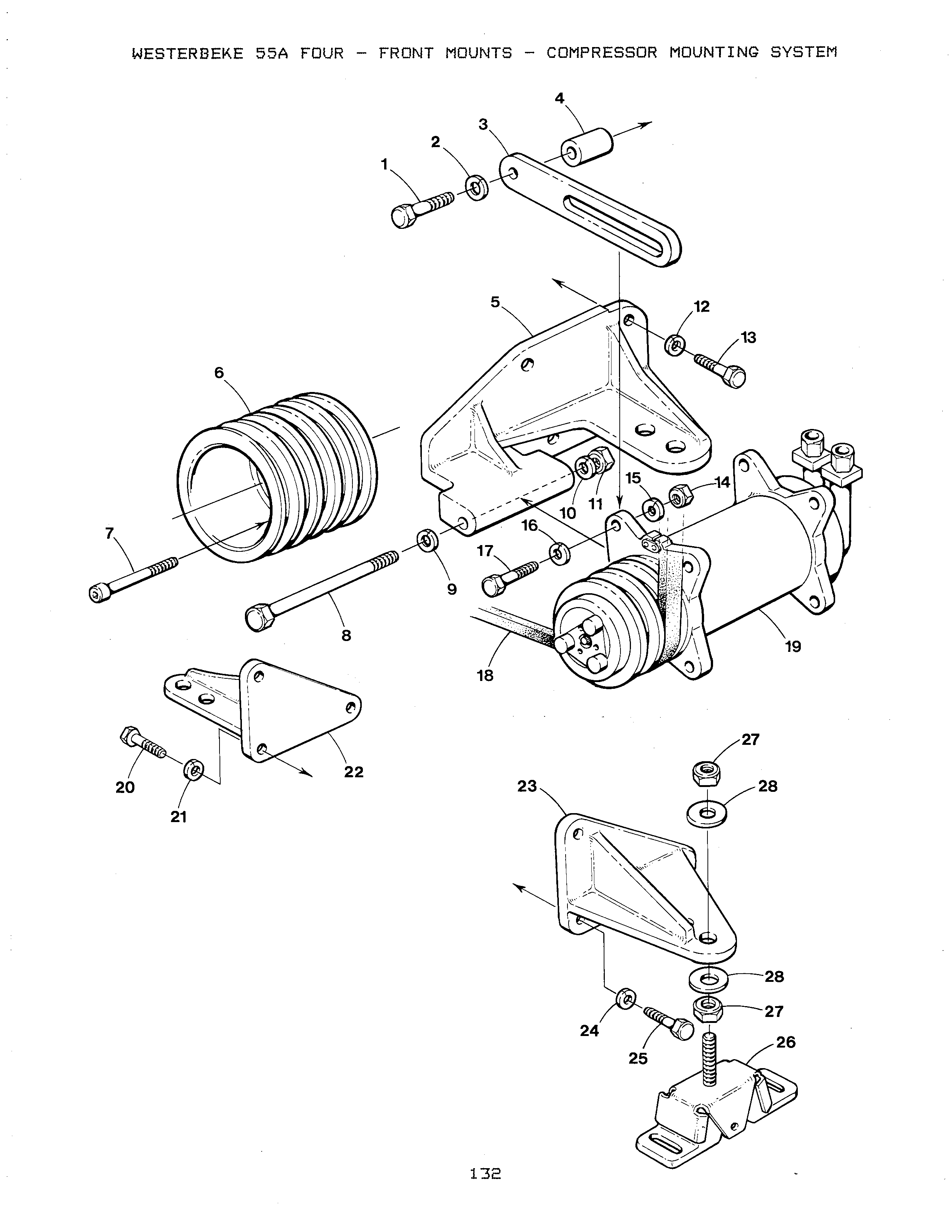

FRONT MOUNTS-COMPRESSOR MOUNTING

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram
$9.80
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

STRAP

Part #: 042295
$29.30
QTY:

Sold By: EA

4

On Diagram

SPACER

Part #: 041023
$62.70
QTY:

Sold By: EA

5

On Diagram

MOUNT

Part #: 040436
$791.10
QTY:

Sold By: EA

6

On Diagram

PULLEY

Part #: 040922
$414.80
QTY:

Sold By: EA

7

On Diagram

CAPSCREW M 8x35 DIN 912

Part #: 031925
$1.40
QTY:

Sold By: EA

8

On Diagram

CAPSCREW

Part #: 031671
Price not found
QTY:

Sold By: each

9

On Diagram

WASHER

Part #: 031771
$0.30
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

11

On Diagram

NUT 7/16-14 NC

Part #: 031768
$0.40
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

13

On Diagram
$2.10
QTY:

Sold By: EA

14

On Diagram

NUT 3/8-24 NF

Part #: 031766
$0.30
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

16

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

17

On Diagram

CAPSCREW 3/8NFx1-1/2

Part #: 031632
$0.90
QTY:

Sold By: EA

18

On Diagram

BELT

Part #: 041024
$28.60
QTY:

Sold By: EA

20

On Diagram
$2.10
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

22

On Diagram

MOUNT

Part #: 041722
$411.30
QTY:

Sold By: EA

23

On Diagram

MOUNT

Part #: 041720
$411.30
QTY:

Sold By: EA

24

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

25

On Diagram
$2.10
QTY:

Sold By: EA

26

On Diagram

ISOLATOR

Part #: 040511
$230.80
QTY:

Sold By: EA

27

On Diagram

NUT M16 JAM SELF-LOCKING

Part #: 040966
$2.60
QTY:

Sold By: EA

28

On Diagram

WASHER

Part #: 031828
$0.50
QTY:

Sold By: EA
