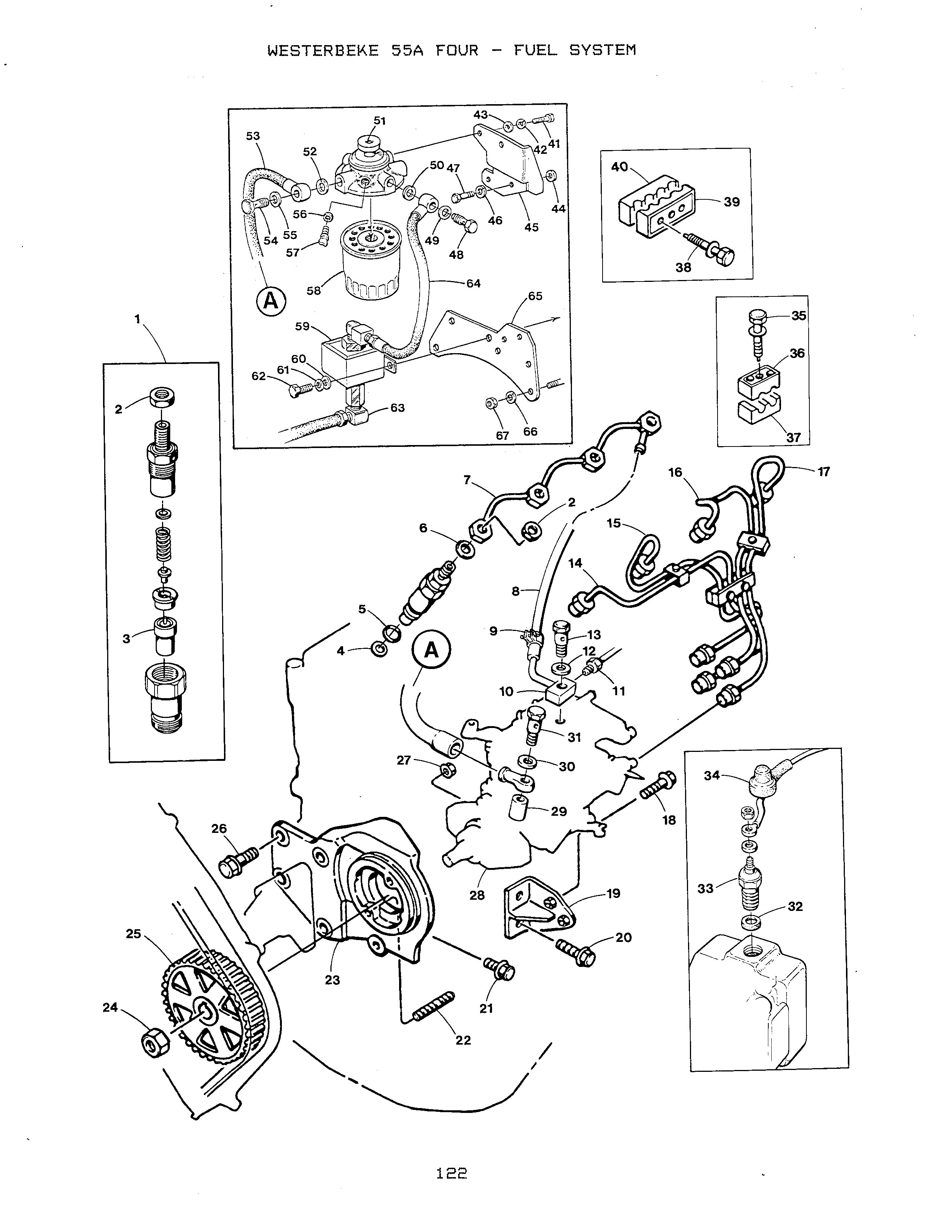

FUEL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

INJECTOR 55A

Part #: 041905
$284.00
QTY:

Sold By: EA

2

On Diagram

NUT

Part #: 041924
$14.30
QTY:

Sold By: EA

3

On Diagram

NOZZLE

Part #: 041906
$150.20
QTY:

Sold By: EA

4

On Diagram

GASKET

Part #: 041907
$16.00
QTY:

Sold By: EA

5

On Diagram

WASHER

Part #: 024454
$5.60
QTY:

Sold By: EA

6

On Diagram

GASKET

Part #: 031021
$5.30
QTY:

Sold By: EA

7

On Diagram

LINE

Part #: 041908
$73.30
QTY:

Sold By: EA

8

On Diagram

HOSE

Part #: 040135
$21.20
QTY:

Sold By: EA

9

On Diagram

CLAMP

Part #: 040384
$2.10
QTY:

Sold By: EA

10

On Diagram

BANJO ASSY

Part #: 040134
$137.00
QTY:

Sold By: EA

11

On Diagram

CONNECTOR

Part #: 013346
$4.20
QTY:

Sold By: EA

12

On Diagram

BOLT

Part #: 024501
$70.90
QTY:

Sold By: EA

13

On Diagram

WASHER

Part #: 024498
$4.40
QTY:

Sold By: EA

14

On Diagram

LINE

Part #: 041909
$62.20
QTY:

Sold By: EA

15

On Diagram

LINE

Part #: 041910
$62.20
QTY:

Sold By: EA

16

On Diagram

LINE

Part #: 041911
$62.20
QTY:

Sold By: EA

17

On Diagram

LINE

Part #: 041912
$62.20
QTY:

Sold By: EA

18

On Diagram

CAPSCREW

Part #: 036642
Price not found
QTY:

Sold By: each

19

On Diagram

BRACKET

Part #: 041921
$23.20
QTY:

Sold By: EA

20

On Diagram
$7.00
QTY:

Sold By: EA

21

On Diagram
$8.50
QTY:

Sold By: EA

22

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

23

On Diagram

BRACKET

Part #: 041919
$308.90
QTY:

Sold By: EA

24

On Diagram

NUT

Part #: 041918
$4.40
QTY:

Sold By: EA

25

On Diagram

PULLEY

Part #: 041920
$137.20
QTY:

Sold By: EA

26

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

27

On Diagram

NUT M 8 JIS-FLANGE

Part #: 033668
$3.00
QTY:

Sold By: EA

28

On Diagram

PUMP

Part #: 041970
$3,935.00
QTY:

Sold By: EA

29

On Diagram

SPACER

Part #: 044208

This part is replaced with part number 024504

Price not found
QTY:

Sold By: each

30

On Diagram

WASHER

Part #: 024498
$4.40
QTY:

Sold By: EA

31

On Diagram

BOLT

Part #: 044207

This part is replaced with part number 024503

Price not found
QTY:

Sold By: each

32

On Diagram

O-RING

Part #: 024339
$12.30
QTY:

Sold By: EA

33

On Diagram

SOLENOID

Part #: 024338
$517.80
QTY:

Sold By: EA

34

On Diagram

WIRE

Part #: 039672
$44.20
QTY:

Sold By: EA

35

On Diagram

BOLT

Part #: 041915
$2.60
QTY:

Sold By: EA

36

On Diagram

CLAMP

Part #: 041913
$6.70
QTY:

Sold By: EA

37

On Diagram

CLAMP

Part #: 041914
$6.70
QTY:

Sold By: EA

38

On Diagram

BOLT

Part #: 041915
$2.60
QTY:

Sold By: EA

39

On Diagram

CLAMP

Part #: 041916
$7.30
QTY:

Sold By: EA

40

On Diagram

CLAMP

Part #: 041917
$7.30
QTY:

Sold By: EA

41

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

42

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

43

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

44

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

45

On Diagram

BRACKET

Part #: 040016
$49.00
QTY:

Sold By: EA

46

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

47

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

48

On Diagram

BOLT

Part #: 030139
$17.90
QTY:

Sold By: EA

49-1

On Diagram

WASHER

Part #: 030291
$9.40
QTY:

Sold By: EA

49-2

On Diagram

WASHER

Part #: 024972
$0.90
QTY:

Sold By: EA

50

On Diagram

WASHER

Part #: 030290
$5.90
QTY:

Sold By: EA

51

On Diagram

FILTER

Part #: 041971
$245.90
QTY:

Sold By: EA

52

On Diagram

WASHER

Part #: 030290
$5.90
QTY:

Sold By: EA

53

On Diagram

HOSE

Part #: 040906
$139.90
QTY:

Sold By: EA

54

On Diagram

BOLT

Part #: 030139
$17.90
QTY:

Sold By: EA

55-1

On Diagram

WASHER

Part #: 030291
$9.40
QTY:

Sold By: EA

55-2

On Diagram

WASHER

Part #: 024972
$0.90
QTY:

Sold By: EA

56

On Diagram

O-RING

Part #: 041977
$3.20
QTY:

Sold By: EA

57

On Diagram

SCREW

Part #: 041976
$17.90
QTY:

Sold By: EA

58

On Diagram

FILTER

Part #: 024363
$14.40
QTY:

Sold By: EA

59

On Diagram

PUMP

Part #: 039275
$178.80
QTY:

Sold By: EA

60

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

61

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

62

On Diagram

CAPSCREW M 6x14 DIN 933

Part #: 031810
$0.50
QTY:

Sold By: EA

63

On Diagram
$8.80
QTY:

Sold By: EA

64

On Diagram

HOSE

Part #: 034741
$76.20
QTY:

Sold By: EA

65

On Diagram

BRACKET

Part #: 040015
$26.80
QTY:

Sold By: EA

66

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

67

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA
