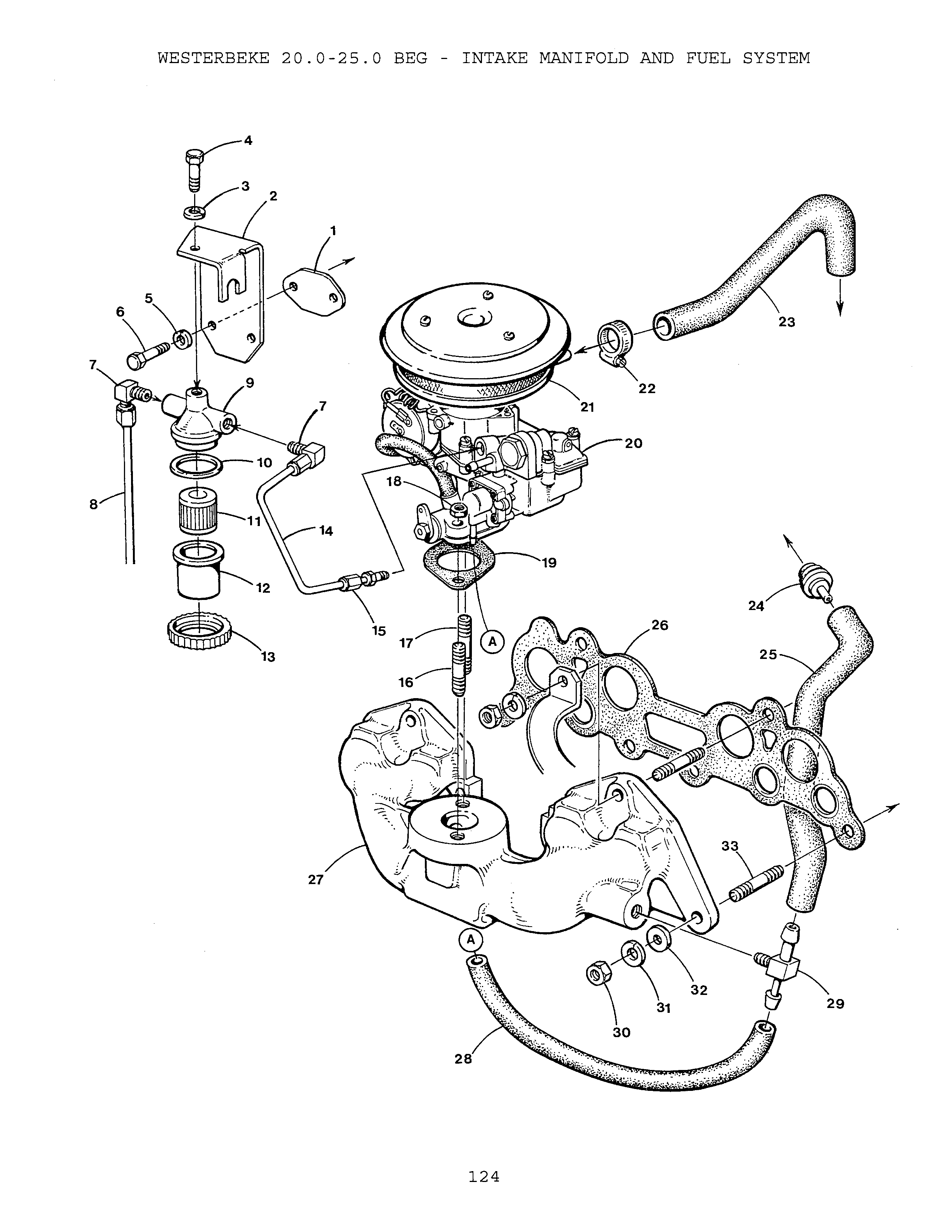

INTAKE MANIFOLD AND FUEL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 034234
$2.10
QTY:

Sold By: EA

2

On Diagram

BRACKET

Part #: 040556
$36.80
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4

On Diagram
$1.70
QTY:

Sold By: EA

5

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

6

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

7-1

On Diagram

ELBOW

Part #: 013329
$3.60
QTY:

Sold By: EA

7-2

On Diagram

NUT

Part #: 016676
$1.70
QTY:

Sold By: EA

7-3

On Diagram

FERRULE 1/4OD TUBE

Part #: 011597
$0.70
QTY:

Sold By: EA

8

On Diagram

LINE

Part #: 040550
$38.30
QTY:

Sold By: EA

9

On Diagram

FILTER

Part #: 042817
$148.20
QTY:

Sold By: EA

10

On Diagram

O-RING

Part #: 040879
$2.20
QTY:

Sold By: EA

11

On Diagram

ELEMENT

Part #: 040838
$6.20
QTY:

Sold By: EA

12

On Diagram

CUP

Part #: 040878

This part is replaced with part number 042817

Price not found
QTY:

Sold By: EA

13

On Diagram

NUT

Part #: 042410
$59.00
QTY:

Sold By: EA

14

On Diagram

LINE

Part #: 040558
$18.10
QTY:

Sold By: EA

15-1

On Diagram

CONNECTOR

Part #: 019449
$4.50
QTY:

Sold By: EA

15-2

On Diagram

NUT

Part #: 016676
$1.70
QTY:

Sold By: EA

15-3

On Diagram

FERRULE 1/4OD TUBE

Part #: 011597
$0.70
QTY:

Sold By: EA

16

On Diagram

STUD

Part #: 038510
$8.80
QTY:

Sold By: EA

17

On Diagram

STUD

Part #: 011263
$2.50
QTY:

Sold By: EA

18-1

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

18-2

On Diagram

LOCKWASHER M 8 DIN 6797J

Part #: 031835
$0.40
QTY:

Sold By: EA

19

On Diagram

GASKET

Part #: 033606
$5.00
QTY:

Sold By: EA

20

On Diagram

CARBURETOR

Part #: 039454

This part is no longer available.

Price not found
QTY:

Sold By: EA

21

On Diagram

ARRESTOR

Part #: 034894
$221.80
QTY:

Sold By: EA

22

On Diagram

CLAMP

Part #: 017298
$2.00
QTY:

Sold By: EA

23

On Diagram

HOSE

Part #: 035894
$16.10
QTY:

Sold By: EA

24

On Diagram

VALVE

Part #: 033808
$42.80
QTY:

Sold By: EA

25

On Diagram

HOSE

Part #: 034077
$38.30
QTY:

Sold By: EA

26

On Diagram

GASKET

Part #: 040833
$33.50
QTY:

Sold By: EA

27

On Diagram

MANIFOLD

Part #: 040142
$638.00
QTY:

Sold By: EA

28

On Diagram

HOSE

Part #: 033975

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.30
QTY:

Sold By: IN

29

On Diagram

TEE

Part #: 033753
$28.20
QTY:

Sold By: EA

30

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

32

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

33

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA
