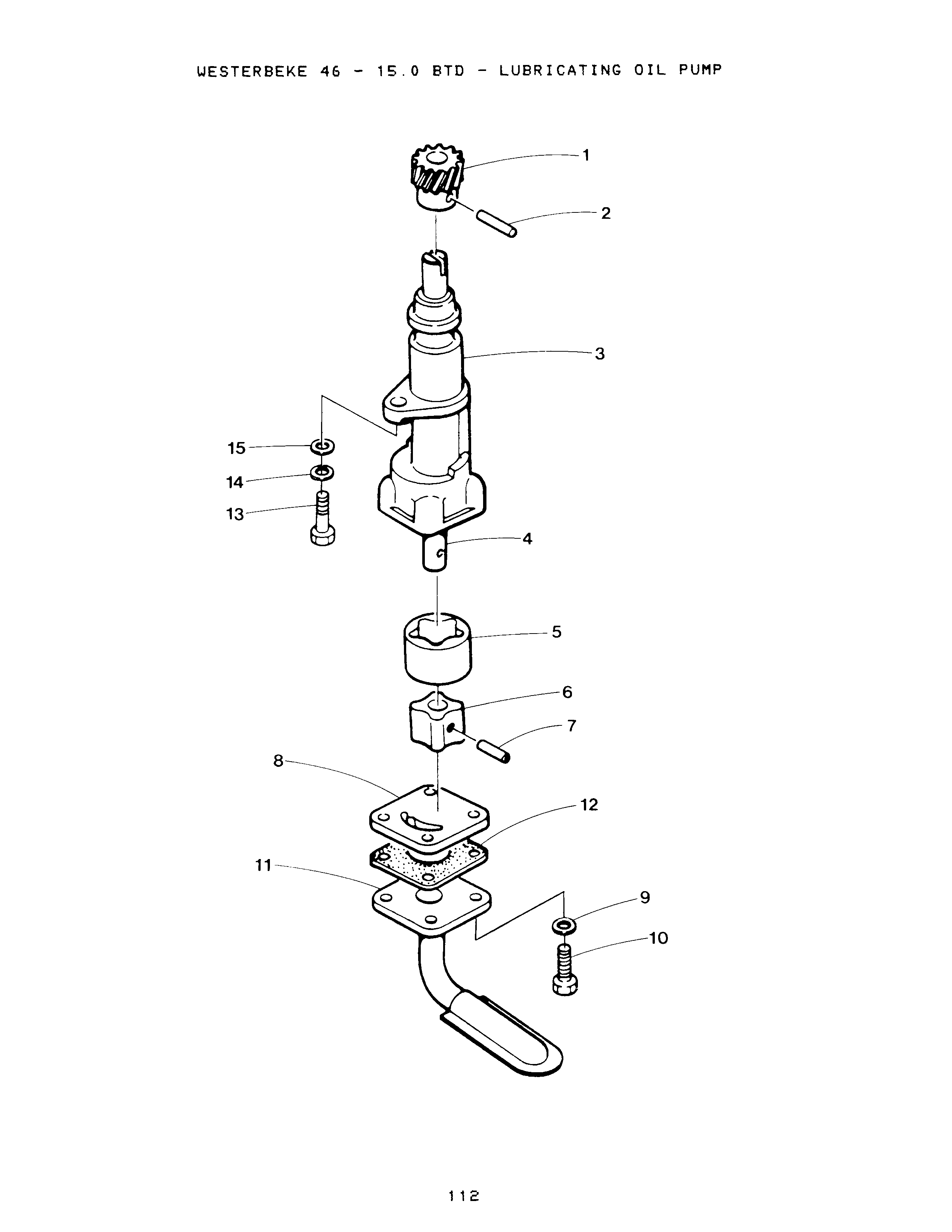

LUBRICATING OIL PUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GEAR

Part #: 034385
$151.20
QTY:

Sold By: EA

2

On Diagram

PIN

Part #: 034386
$10.40
QTY:

Sold By: EA

3

On Diagram

PUMP

Part #: 034363
$1,096.90
QTY:

Sold By: EA

4

On Diagram

SHAFT

Part #: 034364

This part is replaced with part number 034363

Price not found
QTY:

Sold By: EA

8

On Diagram

COVER

Part #: 034270
$32.50
QTY:

Sold By: EA

9

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

10

On Diagram

CAPSCREW M 6x20 DIN 933

Part #: 018804
$0.70
QTY:

Sold By: EA

11

On Diagram

STRAINER

Part #: 034365
$341.80
QTY:

Sold By: EA

12

On Diagram

GASKET

Part #: 034272
$4.30
QTY:

Sold By: EA

13

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

14

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

15

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA
