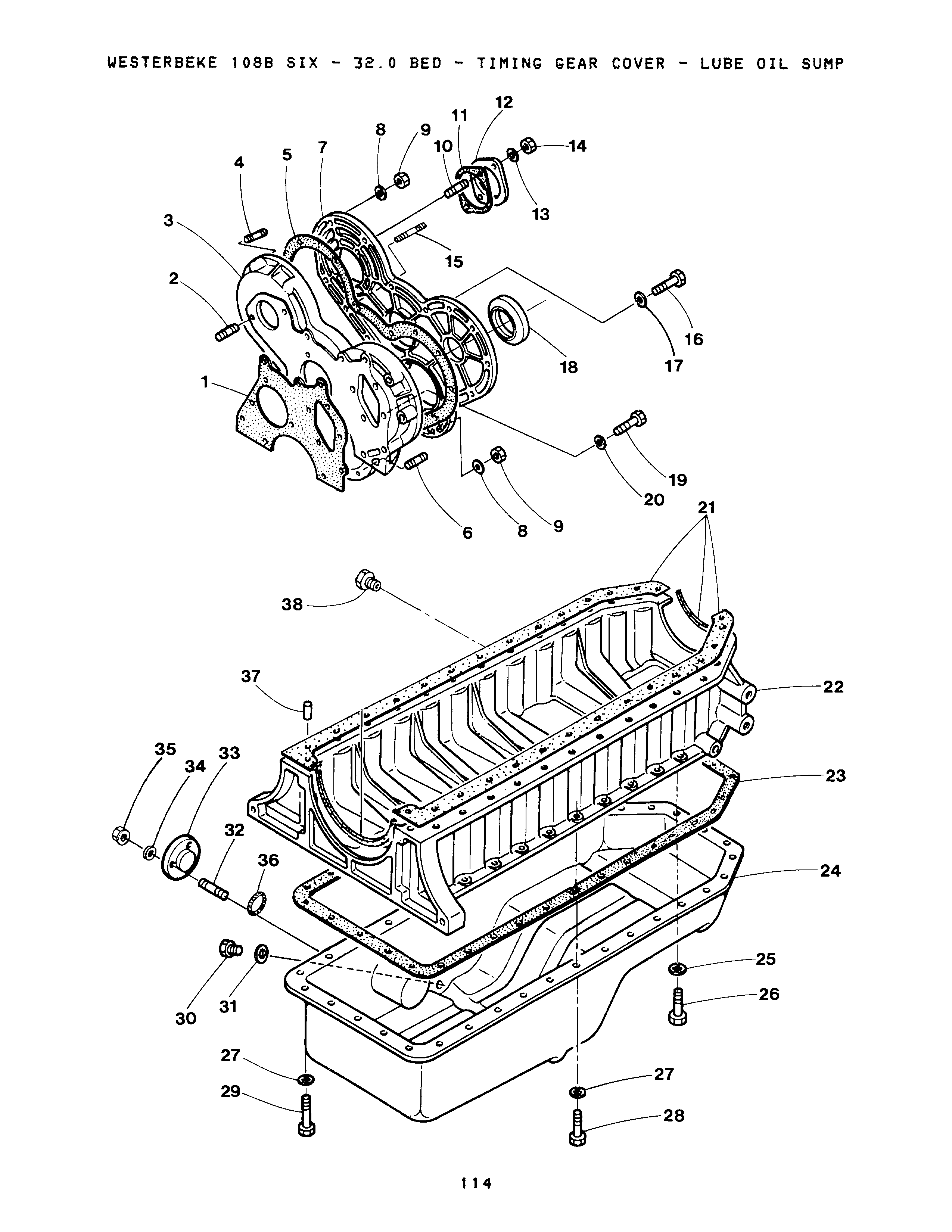

108B - 32.0 BED - TIMING GEAR COVER-OIL SUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 032822
$11.20
QTY:

Sold By: EA

2

On Diagram

STUD

Part #: 032379
$3.70
QTY:

Sold By: EA

3

On Diagram

CASE

Part #: 032760
$354.00
QTY:

Sold By: EA

4

On Diagram

STUD

Part #: 032876

This part is replaced with part number 012501

Price not found
QTY:

Sold By: EA

5

On Diagram

GASKET

Part #: 032823
$27.40
QTY:

Sold By: EA

6

On Diagram

STUD

Part #: 012495
$4.70
QTY:

Sold By: EA

7

On Diagram

COVER

Part #: 032761
$302.70
QTY:

Sold By: EA

8

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

9

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

10

On Diagram

STUD

Part #: 032381
$4.30
QTY:

Sold By: EA

11

On Diagram

GASKET

Part #: 024399
$6.50
QTY:

Sold By: EA

12

On Diagram

COVER

Part #: 024398
$7.90
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

14

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

15

On Diagram

STUD

Part #: 012497
$4.60
QTY:

Sold By: EA

16

On Diagram

CAPSCREW 5/16NFx2-1/4

Part #: 031585
$0.60
QTY:

Sold By: EA

17

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

18

On Diagram

SEAL

Part #: 032762
$46.40
QTY:

Sold By: EA

19

On Diagram

CAPSCREW 5/16NFx7/8

Part #: 031579
$0.50
QTY:

Sold By: EA

20

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

21

On Diagram

GASKET SET

Part #: 032803
$140.40
QTY:

Sold By: ST

22

On Diagram

BLOCK

Part #: 032893

This part is no longer available.

Price not found
QTY:

Sold By: EA

23

On Diagram

GASKET

Part #: 032790
$76.40
QTY:

Sold By: EA

24

On Diagram

SUMP

Part #: 032757

This part is no longer available.

Price not found
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

26

On Diagram

CAPSCREW 5/16NFx1

Part #: 031580
$0.40
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

28

On Diagram

CAPSCREW 5/16NFx5/8

Part #: 031577
$0.50
QTY:

Sold By: EA

29

On Diagram

CAPSCREW

Part #: 031596
Price not found
QTY:

Sold By: each

30

On Diagram

PLUG

Part #: 024337
$5.30
QTY:

Sold By: EA

31

On Diagram

GASKET

Part #: 024335
$1.70
QTY:

Sold By: EA

32

On Diagram

STUD M 6x12 DIN 939

Part #: 033679
$1.30
QTY:

Sold By: EA

33

On Diagram

COVER

Part #: 033674
$22.00
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

35

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

36

On Diagram

O-RING

Part #: 033675
$12.50
QTY:

Sold By: EA

37

On Diagram

DOWEL

Part #: 032901
$1.70
QTY:

Sold By: EA

38

On Diagram

PLUG

Part #: 032905
$5.30
QTY:

Sold By: EA
