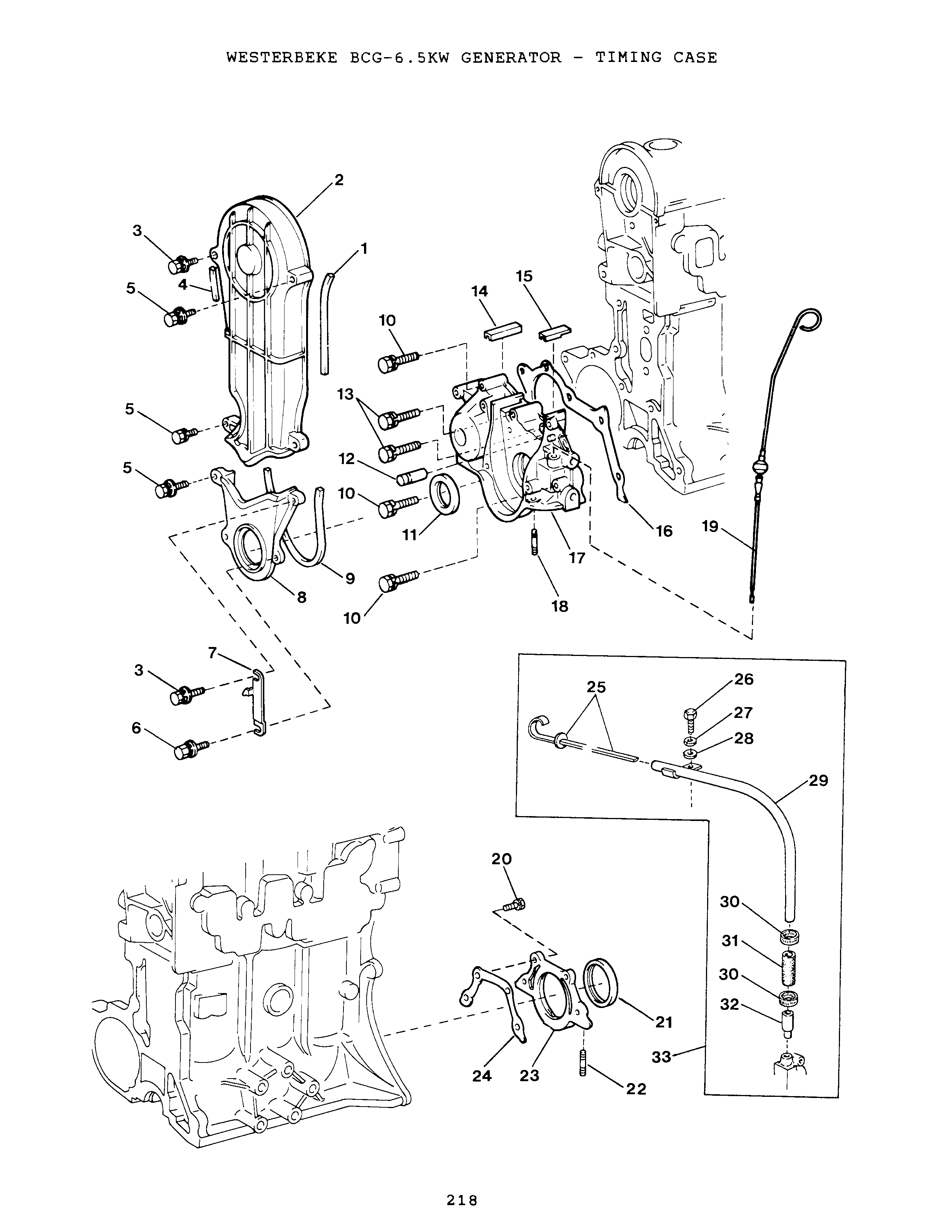

6.5 BCG - TIMING CASE

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 035644

This part is replaced with part number 035639

Price not found
QTY:

Sold By: EA

2

On Diagram

COVER

Part #: 035487
$78.10
QTY:

Sold By: EA

3

On Diagram

BOLT

Part #: 035782
$3.80
QTY:

Sold By: EA

4

On Diagram

GASKET

Part #: 035638

This part is replaced with part number 035639

Price not found
QTY:

Sold By: EA

5

On Diagram
$2.40
QTY:

Sold By: EA

6

On Diagram
$2.30
QTY:

Sold By: EA

7

On Diagram

POINTER TIMING

Part #: 035494
$126.80
QTY:

Sold By: EA

8

On Diagram

COVER

Part #: 035489
$57.10
QTY:

Sold By: EA

9

On Diagram

GASKET

Part #: 035645
$14.90
QTY:

Sold By: EA

10

On Diagram
$5.70
QTY:

Sold By: EA

11

On Diagram

SEAL

Part #: 035648
$22.90
QTY:

Sold By: EA

12

On Diagram

PIN

Part #: 036216
$12.40
QTY:

Sold By: EA

13

On Diagram
$8.00
QTY:

Sold By: EA

14

On Diagram

SEAL

Part #: 035643
$15.30
QTY:

Sold By: EA

15

On Diagram

SEAL

Part #: 035642
$9.50
QTY:

Sold By: EA

16

On Diagram

GASKET

Part #: 035485
$36.70
QTY:

Sold By: EA

17

On Diagram

COVER

Part #: 035483
$474.20
QTY:

Sold By: EA

18

On Diagram

STUD

Part #: 035683
$4.00
QTY:

Sold By: EA

19

On Diagram

DIPSTICK

Part #: 035592
$51.80
QTY:

Sold By: EA

20

On Diagram
$3.20
QTY:

Sold By: EA

21

On Diagram

SEAL

Part #: 035646
$121.70
QTY:

Sold By: EA

22

On Diagram

STUD

Part #: 035683
$4.00
QTY:

Sold By: EA

23

On Diagram

RETAINER

Part #: 035491
$81.00
QTY:

Sold By: EA

24

On Diagram

GASKET

Part #: 035493
$24.50
QTY:

Sold By: EA

25

On Diagram

DIPSTICK

Part #: 035893

This part is no longer available.

Price not found
QTY:

Sold By: EA

26

On Diagram

CAPSCREW M 8x16 DIN 933

Part #: 016789
$0.70
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

28

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

29

On Diagram

TUBE

Part #: 035905

This part is no longer available.

Price not found
QTY:

Sold By: EA

30

On Diagram

CLAMP

Part #: 024906
$1.50
QTY:

Sold By: EA

31

On Diagram

HOSE

Part #: 036045

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

Price not found
QTY:

Sold By: IN

32-1

On Diagram

ADAPTER

Part #: 035904
Price not found
QTY:

Sold By: each

32-2

On Diagram

ADHESIVE

Part #: 036023
Price not found
QTY:

Sold By: each

33

On Diagram

KIT

Part #: 036031

This part is replaced with part number 036503

Price not found
QTY:

Sold By: each

34

On Diagram

DRAWING

Part #: 035961
Price not found
QTY:

Sold By: each
