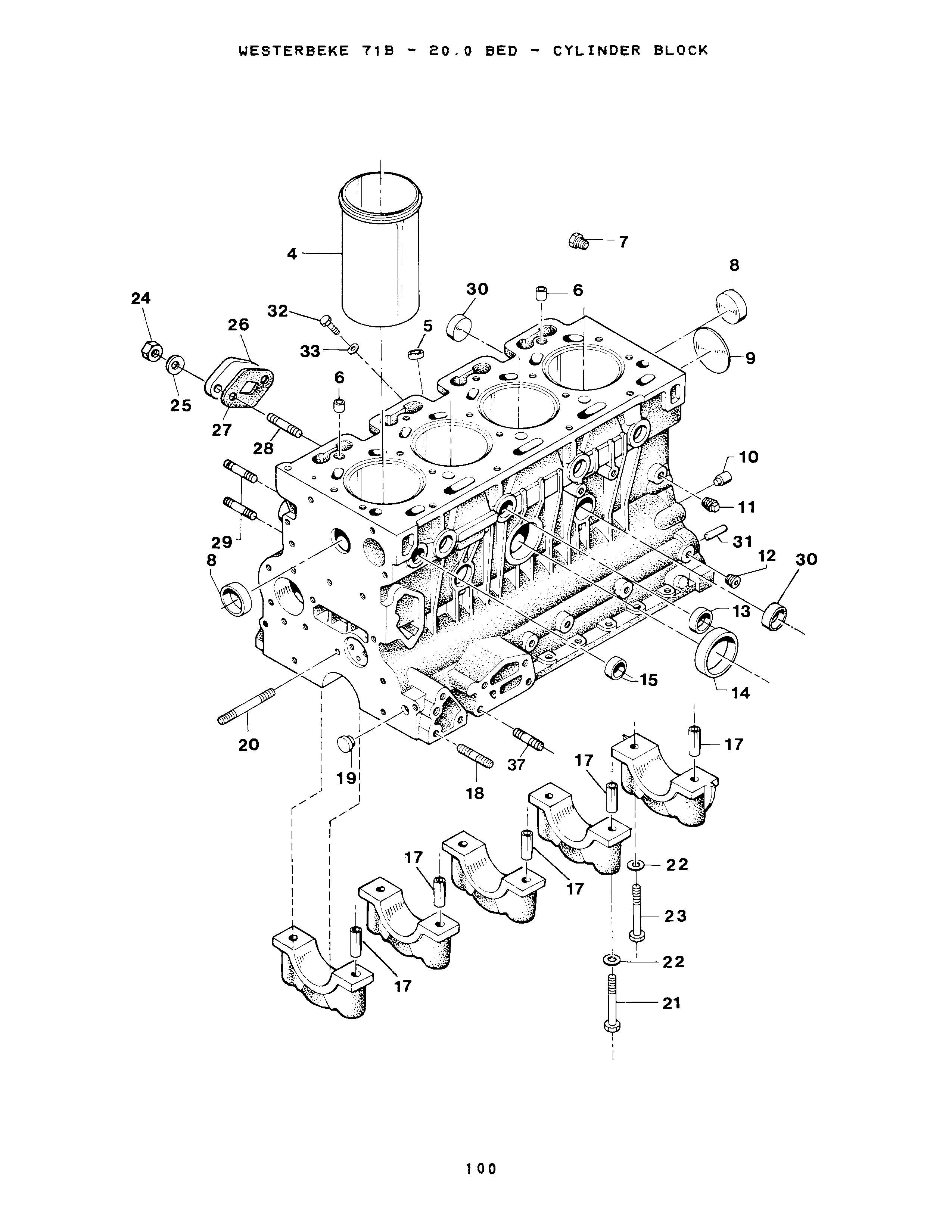

CYLINDER BLOCK

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

BLOCK

Part #: 034920

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-2

On Diagram

BLOCK

Part #: 036757

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-3

On Diagram

BLOCK

Part #: 034920

This part is no longer available.

Price not found
QTY:

Sold By: EA

4

On Diagram

LINER

Part #: 024483
$569.00
QTY:

Sold By: EA

5

On Diagram

PLUG

Part #: 024380
$6.20
QTY:

Sold By: EA

6

On Diagram

DOWEL

Part #: 024383
$7.90
QTY:

Sold By: EA

7

On Diagram

PLUG 1/4 NPT

Part #: 024601
$1.80
QTY:

Sold By: EA

8

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

9

On Diagram

PLUG

Part #: 024379
$6.20
QTY:

Sold By: EA

10

On Diagram

ADAPTER

Part #: 019309
$305.60
QTY:

Sold By: EA

11-1

On Diagram

PLUG 1/4 NPT

Part #: 011724
$2.20
QTY:

Sold By: EA

11-2

On Diagram

PETCOCK

Part #: 013970
$3.50
QTY:

Sold By: EA

12

On Diagram

PLUG 1/8 NPT SOCKET

Part #: 024523
$5.80
QTY:

Sold By: EA

13

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

14

On Diagram

PLUG

Part #: 024378
$6.40
QTY:

Sold By: EA

15

On Diagram

PLUG

Part #: 024369
$4.70
QTY:

Sold By: EA

16

On Diagram

PLUG

Part #: 019957
Price not found
QTY:

Sold By: each

17

On Diagram

DOWEL

Part #: 024383
$7.90
QTY:

Sold By: EA

19

On Diagram

PLUG

Part #: 024364
$5.90
QTY:

Sold By: EA

20

On Diagram

STUD

Part #: 024385
$6.20
QTY:

Sold By: EA

21

On Diagram

BOLT

Part #: 024386
$8.50
QTY:

Sold By: EA

22

On Diagram

WASHER

Part #: 017849
$3.90
QTY:

Sold By: EA

23

On Diagram

BOLT

Part #: 024387

This part is no longer available.

Price not found
QTY:

Sold By: EA

24

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

26

On Diagram

PLATE

Part #: 024382
$5.30
QTY:

Sold By: EA

27

On Diagram

GASKET

Part #: 024466
$5.10
QTY:

Sold By: EA

30

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

31

On Diagram

DOWEL 6MM x 16MM DIN 6325

Part #: 024393
$2.20
QTY:

Sold By: EA

32

On Diagram

CAPSCREW 3/8NCx1/2

Part #: 031601
$0.40
QTY:

Sold By: EA

33

On Diagram

WASHER

Part #: 011944
$3.20
QTY:

Sold By: EA
