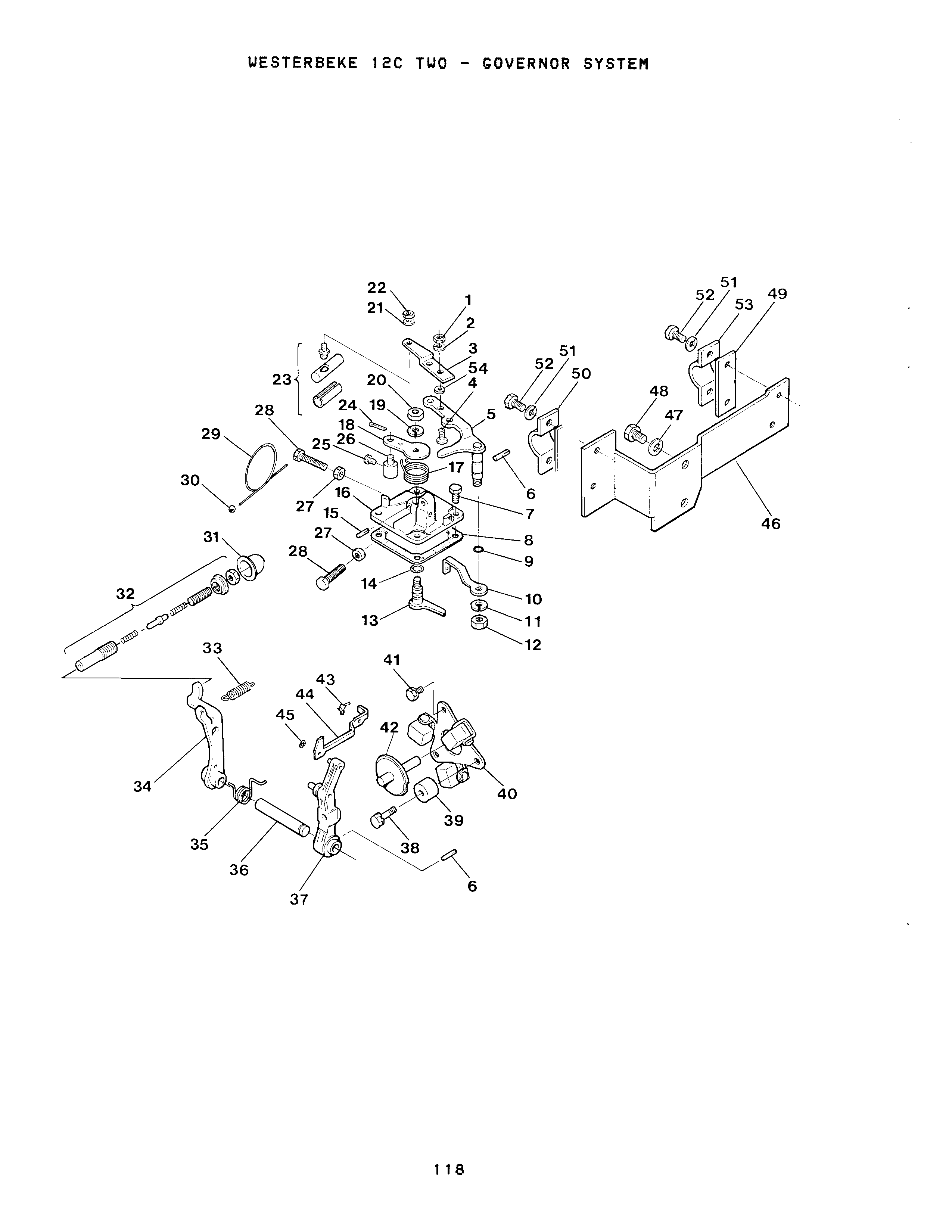

GOVERNOR SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

3

On Diagram

LEVER

Part #: 036847
$14.90
QTY:

Sold By: EA

4

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

5

On Diagram

LEVER

Part #: 037090
$54.50
QTY:

Sold By: EA

6

On Diagram

PIN

Part #: 036942
$2.50
QTY:

Sold By: EA

7

On Diagram

CAPSCREW M 6x12 DIN 933

Part #: 031825
$0.60
QTY:

Sold By: EA

8

On Diagram

GASKET

Part #: 037024
$5.90
QTY:

Sold By: EA

9

On Diagram

O-RING

Part #: 030277
$2.70
QTY:

Sold By: EA

10

On Diagram

LEVER

Part #: 036989
$12.80
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

12

On Diagram

NUT M 8 DIN 936 JAM

Part #: 031802
$0.40
QTY:

Sold By: EA

14

On Diagram

O-RING

Part #: 030277
$2.70
QTY:

Sold By: EA

16

On Diagram

COVER ASSEMBLY

Part #: 037602
$299.40
QTY:

Sold By: EA

18

On Diagram

LEVER

Part #: 036725
$17.20
QTY:

Sold By: EA

19

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

20

On Diagram

NUT M 8 DIN 936 JAM

Part #: 031802
$0.40
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

22

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

23

On Diagram

BALLJOINT

Part #: 019364
$6.80
QTY:

Sold By: EA

24

On Diagram

PIN

Part #: 011796
$0.30
QTY:

Sold By: EA

25

On Diagram

SCREW 10-32 X 1/4 SS

Part #: 031870
$0.50
QTY:

Sold By: EA

26

On Diagram

PIVOT

Part #: 019370
$20.00
QTY:

Sold By: EA

27

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

28

On Diagram

SCREW

Part #: 030323
$3.50
QTY:

Sold By: EA

29

On Diagram

WIRE

Part #: 030293

This part is replaced with part number 037393

Price not found
QTY:

Sold By: EA

30

On Diagram

SEAL

Part #: 030292

This part is replaced with part number 037393

Price not found
QTY:

Sold By: EA

31

On Diagram

CAP

Part #: 037044
$21.90
QTY:

Sold By: EA

32

On Diagram

SPRING SET

Part #: 037089
$131.70
QTY:

Sold By: ST

33

On Diagram

SPRING

Part #: 037048
$10.90
QTY:

Sold By: EA

34

On Diagram

LEVER

Part #: 037079
$63.90
QTY:

Sold By: EA

35

On Diagram

SPRING

Part #: 037081
$6.20
QTY:

Sold By: EA

36

On Diagram

SHAFT

Part #: 037080
$26.40
QTY:

Sold By: EA

37

On Diagram

LEVER

Part #: 037078
$98.90
QTY:

Sold By: EA

38-1

On Diagram

CAPSCREW M 6x25 DIN 933

Part #: 020628
$0.50
QTY:

Sold By: EA

38-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

39

On Diagram

STOPPER

Part #: 033200
Price not found
QTY:

Sold By: EA

40

On Diagram

WEIGHT ASSEMBLY

Part #: 030449
$103.20
QTY:

Sold By: EA

41-1

On Diagram

CAPSCREW M 6x10 DIN 933

Part #: 015816
$0.50
QTY:

Sold By: EA

41-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

42

On Diagram

SHAFT

Part #: 036941
$244.00
QTY:

Sold By: EA

43

On Diagram

CLIP

Part #: 037022
$7.40
QTY:

Sold By: EA

44

On Diagram

ROD

Part #: 037021
$60.90
QTY:

Sold By: EA

45

On Diagram

RING

Part #: 036939
$1.50
QTY:

Sold By: EA

46

On Diagram

BRACKET

Part #: 036845
$24.00
QTY:

Sold By: EA

47

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

48

On Diagram

CAPSCREW M 6x14 DIN 933

Part #: 031810
$0.50
QTY:

Sold By: EA

49

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA

50

On Diagram

CLAMP

Part #: 013871
$11.90
QTY:

Sold By: EA

51

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

52

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

53

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

54

On Diagram

WASHER

Part #: 037502
$0.70
QTY:

Sold By: EA
