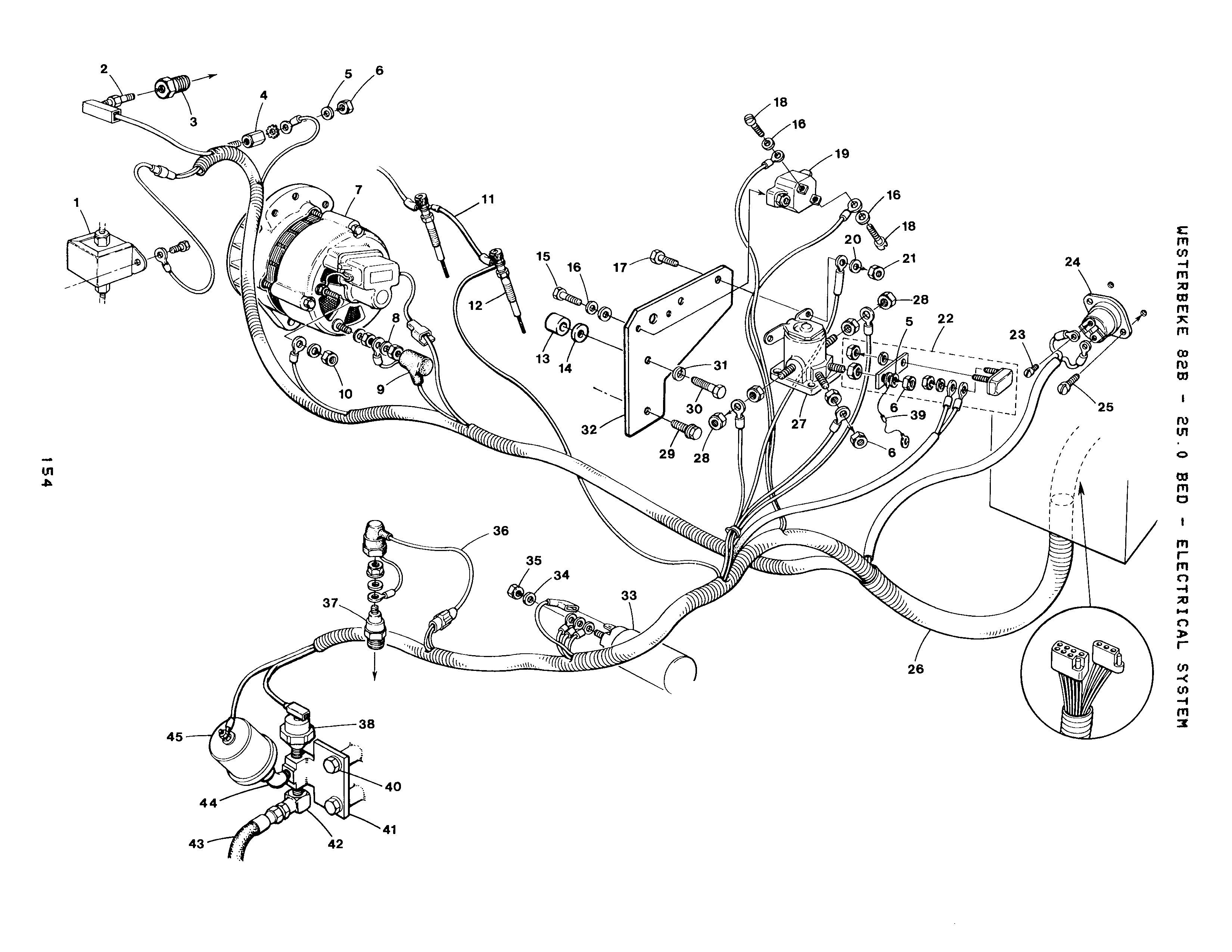

ELECTRICAL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PUMP

Part #: 039275
$178.80
QTY:

Sold By: EA

2-1

On Diagram

SWITCH

Part #: 030125

This part is no longer available. Use temperature switch kit part number 056519.

Price not found
QTY:

Sold By: EA

2-2

On Diagram

SWITCH

Part #: 039550
$29.00
QTY:

Sold By: EA

3

On Diagram

BUSHING

Part #: 037453
$12.30
QTY:

Sold By: EA

4

On Diagram

SENDER

Part #: 035109
$69.60
QTY:

Sold By: EA

5

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

6

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

7

On Diagram

ALTERNATOR 12VDC

Part #: 039790
$395.00
QTY:

Sold By: EA

8

On Diagram

NUT 1/4-20 NC KEPS

Part #: 200120
$0.50
QTY:

Sold By: EA

9

On Diagram

BOOT

Part #: 031086
$1.40
QTY:

Sold By: EA

10

On Diagram

NUT

Part #: 301904
Price not found
QTY:

Sold By: each

11

On Diagram

WIRE

Part #: 032366
$23.20
QTY:

Sold By: EA

12

On Diagram

GLOWPLUG 12VDC

Part #: 024353
$42.20
QTY:

Sold By: EA

13

On Diagram

SPACER

Part #: 021722
$4.30
QTY:

Sold By: EA

14

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

15

On Diagram

SCREW 8-32 X 7/8 SS

Part #: 031866
$0.30
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

17

On Diagram

CAPSCREW 1/4NCx5/8

Part #: 031502
$2.20
QTY:

Sold By: EA

18

On Diagram

SCREW 8-32 X 1/4 SS

Part #: 031861
$0.30
QTY:

Sold By: EA

19-1

On Diagram

BREAKER

Part #: 024683
$63.30
QTY:

Sold By: EA

19-2

On Diagram

BREAKER

Part #: 020946
$126.60
QTY:

Sold By: EA

20

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

21

On Diagram

NUT 1/4-20 NC

Part #: 031750
$0.40
QTY:

Sold By: EA

22

On Diagram

BREAKER

Part #: 036563
$31.00
QTY:

Sold By: EA

23

On Diagram

SCREW 8-32 x 1/4 BRASS

Part #: 031911
$0.50
QTY:

Sold By: EA

24

On Diagram

SWITCH

Part #: 032923
$37.70
QTY:

Sold By: EA

25

On Diagram

SCREW 6-32 X 1/4 TAPPING

Part #: 035711
$0.40
QTY:

Sold By: EA

26-1

On Diagram

HARNESS

Part #: 036605
$312.40
QTY:

Sold By: EA

26-2

On Diagram

HARNESS

Part #: 039205
$201.80
QTY:

Sold By: EA

27-1

On Diagram

SOLENOID 12VDC

Part #: 024639
$35.80
QTY:

Sold By: EA

27-2

On Diagram

SOLENOID 24VDC

Part #: 022249
$97.70
QTY:

Sold By: EA

28

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

29

On Diagram
$7.00
QTY:

Sold By: EA

30

On Diagram

CAPSCREW M10x1.25x30 JIS

Part #: 031083
$3.50
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

32

On Diagram

BRACKET

Part #: 032270
$35.60
QTY:

Sold By: EA

33

On Diagram

SOLENOID

Part #: 039523
$75.50
QTY:

Sold By: EA

34

On Diagram
$1.40
QTY:

Sold By: EA

35

On Diagram

NUT M10 DIN 439 BRASS

Part #: 032438
$2.20
QTY:

Sold By: EA

36

On Diagram

WIRE

Part #: 039672
$44.20
QTY:

Sold By: EA

38

On Diagram

SWITCH

Part #: 037323
$31.20
QTY:

Sold By: EA

39

On Diagram

RESISTOR ASSEMBLY

Part #: 039806
$13.70
QTY:

Sold By: EA

40

On Diagram
$1.70
QTY:

Sold By: EA

41

On Diagram

BRACKET

Part #: 032480
$36.00
QTY:

Sold By: EA

42

On Diagram
$8.80
QTY:

Sold By: EA

43-1

On Diagram

HOSE

Part #: 011981
$52.80
QTY:

Sold By: EA

43-2

On Diagram
$14.40
QTY:

Sold By: EA

44

On Diagram

ELBOW 1/8NPT STREET 45

Part #: 015122
$15.10
QTY:

Sold By: EA

45

On Diagram

SENDER

Part #: 024132
$79.60
QTY:

Sold By: EA

46-1

On Diagram

DIAGRAM

Part #: 039144
Price not found
QTY:

Sold By: each

46-2

On Diagram

DIAGRAM

Part #: 039422
Price not found
QTY:

Sold By: each
